Tutorial: Fluorescence Signal Quantification in InSituPy

This tutorial demonstrates how to quantify fluorescence signals from microscopy images using the quantify_signal function of an InSituData object.

Overview

The quantify_signal function allows you to:

• Measure fluorescence intensity in cells from IF images

• Choose between different quantification methods (mean, median, etc.)

• Specify which cellular compartment to analyze (cells or nuclei)

• Automatically add results to your AnnData object

## Ensure all functions are reloaded before execution
%load_ext autoreload
%autoreload 2

from pathlib import Path
from insitupy import InSituData, CACHE

Step 1: Load Your Data

First, we load the InSituPy project and the necessary modalities.

# Read the InSituPy project
insitupy_project = Path(CACHE / "out/demo_insitupy_project")
xd = InSituData.read(insitupy_project)

# Load required modalities
xd.load_images()
xd.load_cells()
xd.load_annotations()

Step 2: Inspect Available Data

Let’s check what cells and images are available.

# View cell data structure
xd.cells

MultiCellData with main layer 'main'
    table
        AnnData object with n_obs × n_vars = 156447 × 297
        obs: 'transcript_counts', 'control_probe_counts', 'control_codeword_counts', 'total_counts', 'cell_area', 'nucleus_area', 'n_genes_by_counts', 'n_genes', 'leiden', 'cell_type_dc_sub_final', 'cell_type_publ'
        var: 'gene_ids', 'feature_types', 'genome', 'n_cells_by_counts', 'mean_counts', 'pct_dropout_by_counts', 'total_counts', 'n_cells'
        uns: 'cell_type_dc_sub_final_colors', 'cell_type_publ_colors', 'leiden', 'leiden_colors', 'log1p', 'neighbors', 'pca', 'umap'
        obsm: 'X_pca', 'X_umap', 'annotations', 'regions', 'spatial'
        varm: 'PCs'
        layers: 'counts', 'norm_counts'
        obsp: 'connectivities', 'distances'
    boundaries
        BoundariesData object with 2 entries:
            cells
            nuclei

# Check available images
print("Available images:", list(xd.images.keys()))

Available images: ['CD20', 'HE', 'HER2', 'nuclei']

Step 3: Quantify Fluorescence Signal

Now we’ll quantify the CD20 signal in cells using the median intensity method.

Parameters:

• image_name: Name of the fluorescence image to quantify

• cells_layer: Which cell layer to use (None = main layer)

• cells_compartment: Which compartment to measure (“cells” or “nuclei”)

• method: Quantification method (“median” is recommended)

• add_to_obs: Whether to add results to the AnnData .obs table

# Quantify CD20 signal with median intensity
xd.quantify_signal(
    image_name="CD20",
    cells_layer=None,
    cells_compartment="cells",
    method="median",
    add_to_obs=True
)

Added quantification results to `.cells['None'].table.obs['CD20_signal_cells_median']`.

# Quantify CD20 signal with median intensity
xd.quantify_signal(
    image_name="HER2",
    cells_layer=None,
    cells_compartment="cells",
    method="median",
    add_to_obs=True
)

Added quantification results to `.cells['None'].table.obs['HER2_signal_cells_median']`.

xd.cells

MultiCellData with main layer 'main'
    table
        AnnData object with n_obs × n_vars = 156447 × 297
        obs: 'transcript_counts', 'control_probe_counts', 'control_codeword_counts', 'total_counts', 'cell_area', 'nucleus_area', 'n_genes_by_counts', 'n_genes', 'leiden', 'cell_type_dc_sub_final', 'cell_type_publ', 'CD20_signal_cells_median', 'HER2_signal_cells_median'
        var: 'gene_ids', 'feature_types', 'genome', 'n_cells_by_counts', 'mean_counts', 'pct_dropout_by_counts', 'total_counts', 'n_cells'
        uns: 'cell_type_dc_sub_final_colors', 'cell_type_publ_colors', 'leiden', 'leiden_colors', 'log1p', 'neighbors', 'pca', 'umap'
        obsm: 'X_pca', 'X_umap', 'annotations', 'regions', 'spatial'
        varm: 'PCs'
        layers: 'counts', 'norm_counts'
        obsp: 'connectivities', 'distances'
    boundaries
        BoundariesData object with 2 entries:
            cells
            nuclei

Step 4: Inspect the Results

The quantification results are stored in the .obs table of your AnnData object.

# View the first few rows of the results
xd.cells.matrix.obs[['CD20_signal_cells_median']].head()

	CD20_signal_cells_median
2	2.0
5	2.0
8	2.0
10	1.0
13	2.0

# Summary statistics
import pandas as pd

print("CD20 Signal Statistics:")
print(xd.cells.matrix.obs['CD20_signal_cells_median'].describe())

CD20 Signal Statistics:
count    156447.000000
mean          2.813595
std           5.270226
min           0.000000
25%           1.000000
50%           2.000000
75%           3.000000
max          85.000000
Name: CD20_signal_cells_median, dtype: float64

Step 5: Visualize the Results

Let’s create some visualizations to explore the quantified signal.

Interactive visualization

xd.show()

WARNING: The selected layer does not contain any plottable data.
INFO: Saved color legend to 'C:\Users\ge37voy\Downloads\colorlegend-main-HER2_signal_cells_median.pdf'

Static plotting

from insitupy.plotting import spatial
spatial(
    data=xd,
    keys='CD20_signal_cells_median',
    image_key='CD20',
)

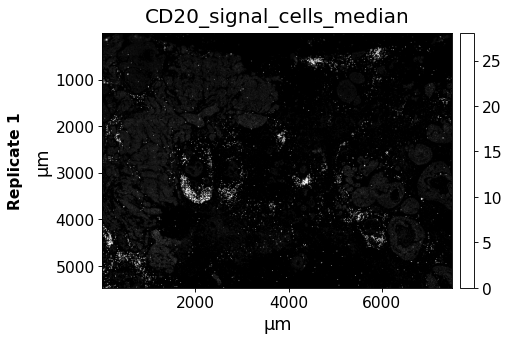

Plotting of the CD20 image shows that the signals are overlapping very well. To show only the image data we set the spots transparent with alpha=0.

spatial(
    data=xd,
    keys='CD20_signal_cells_median',
    image_key='CD20',
    alpha=0
)

Quantifying Nuclear Signals

You can also quantify signals in nuclei specifically:

# Quantify signal in nuclei
xd.quantify_signal(
    image_name="CD20",
    cells_layer=None,
    cells_compartment="nuclei",
    method="median",
    add_to_obs=True
)

Added quantification results to `.cells['None'].matrix.obs['CD20_signal_nuclei_median']`.

from insitupy.plotting import spatial
spatial(
    data=xd,

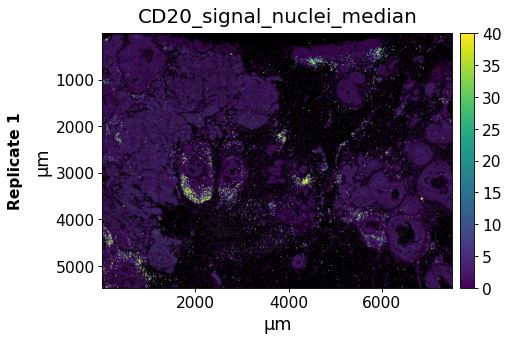

    keys='CD20_signal_nuclei_median',
    image_key='CD20',
)

Processing very large images in memory-efficient manner

In case of very large images, loading the full image into memory can cause problems. For such cases, a memory-efficient tile-based approach is implemented and can be invoked by specifying a tile_size. This approach takes longer but requires significantly less memory.

# Quantify signal in nuclei
xd.quantify_signal(
    image_name="CD20",
    cells_layer=None,
    cells_compartment="cells",
    method="median",
    tile_size=4000,
    add_to_obs=True
)

Quantification using tiled approach with overlap 470...
Collecting results...
Added quantification results to `.cells['None'].matrix.obs['CD20_signal_cells_median']`.

from insitupy.plotting import spatial
spatial(
    data=xd,
    keys='CD20_signal_cells_median',
    image_key='CD20',
)
