Working with histological annotations and regions

Working with histological annotations and regions#

## The following code ensures that all functions and init files are reloaded before executions.
%load_ext autoreload
%autoreload 2

from pathlib import Path
from insitupy import InSituData, CACHE

Load Xenium data into InSituData object#

Now the Xenium data can be parsed by providing the data path to the InSituPy project folder

insitupy_project = Path(CACHE / "out/demo_insitupy_project")
xd = InSituData.read(insitupy_project)

xd

InSituData
Method:		Xenium
Slide ID:	0001879
Sample ID:	Replicate 1
Path:		C:\Users\ge37voy\.cache\InSituPy\out\demo_insitupy_project


No modalities loaded.

Here we only load the images and cells modalities. Since InSitupy v0.6.2 transcripts are loaded lazily, so it would be also just as fast to use load_all() here.

xd.load_images()
xd.load_cells()

xd

InSituData
Method:		Xenium
Slide ID:	0001879
Sample ID:	Replicate 1
Path:		C:\Users\ge37voy\.cache\InSituPy\out\demo_insitupy_project

    ➤ images
       'CD20':     (25778, 35416)
       'HE':       (25778, 35416, 3)
       'HER2':     (25778, 35416)
       'nuclei':   (25778, 35416)
    ➤ cells
       MultiCellData with main layer 'main'
           table
               AnnData object with n_obs × n_vars = 157600 × 297
               obs: 'transcript_counts', 'control_probe_counts', 'control_codeword_counts', 'total_counts', 'cell_area', 'nucleus_area', 'n_genes_by_counts', 'n_genes', 'leiden'
               var: 'gene_ids', 'feature_types', 'genome', 'n_cells_by_counts', 'mean_counts', 'pct_dropout_by_counts', 'total_counts', 'n_cells'
               uns: 'leiden', 'leiden_colors', 'log1p', 'neighbors', 'pca', 'umap'
               obsm: 'X_pca', 'X_umap', 'spatial'
               varm: 'PCs'
               layers: 'counts', 'norm_counts'
               obsp: 'connectivities', 'distances'
           boundaries
               BoundariesData object with 2 entries:
                   cells
                   nuclei

Histological information in InSituPy#

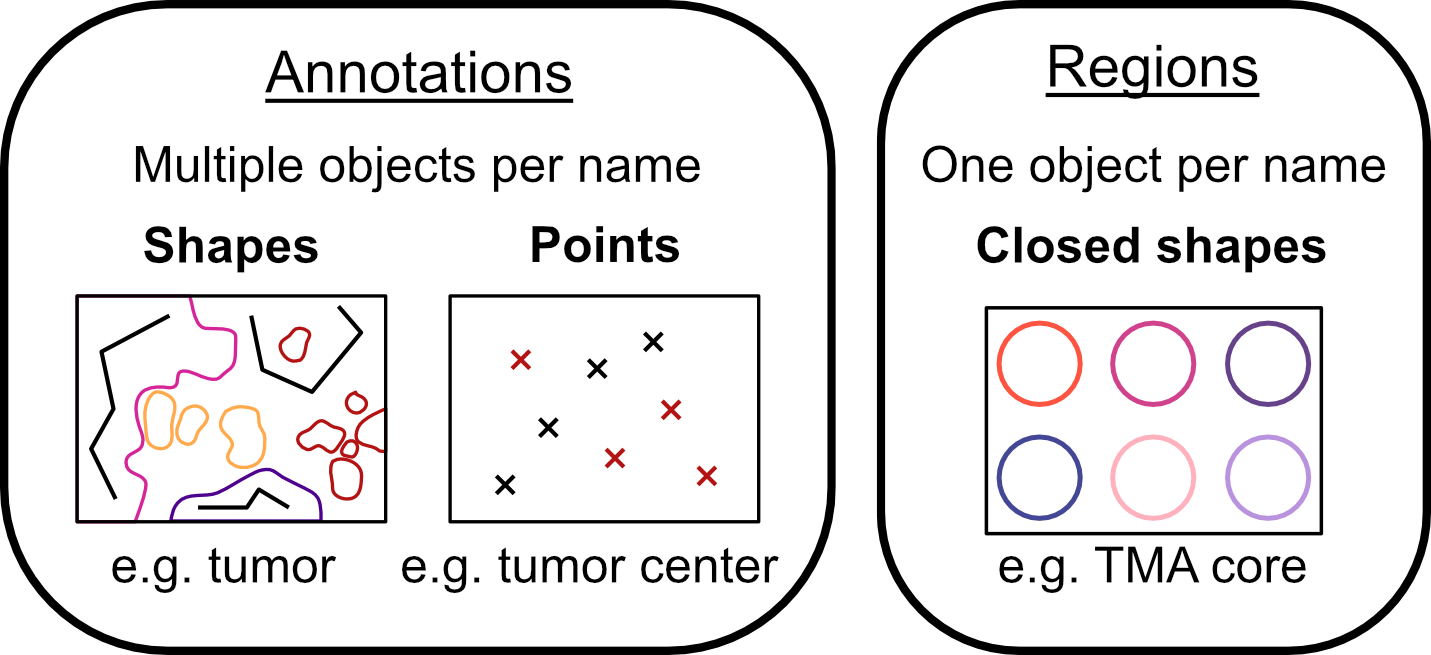

InSituPy organizes histological information into two categories: Annotations and Regions.

../../_images/geometries_overview.png

Annotations#

Annotations are user-defined geometries (polygons, points, or lines) that mark biological features:

  • Class: The biological category (e.g., “tumor”, “immune cells”, “stroma”)

  • Key: The annotation source (e.g., pathologist name, annotation batch)

  • ID: Unique identifier to distinguish individual annotations

Classes within a key need not be unique, but multiple annotations can share the same class label.

Regions#

Regions are polygons that define spatial areas within a dataset:

  • Key: Groups related regions (e.g., “TMA”, “tissue_sections”)

  • Name: Unique identifier within each key (e.g., “TMA_A1”, “TMA_A2”)

Common use cases:

  • TMA cores

  • Multiple tissue sections on one slide

  • Regions of interest for focused analysis

Adding histological information#

This notebook demonstrates two workflows to add histological annotations:

  1. Interactive annotation using InSituPy’s napari viewer integration

  2. Import annotations from QuPath

1. In napari viewer#

First visualize the Xenium data using .show().

xd.show()

INFO: Added 4 new annotations to key 'TestKey'
INFO: Added 5 new annotations to existing key 'TestKey'

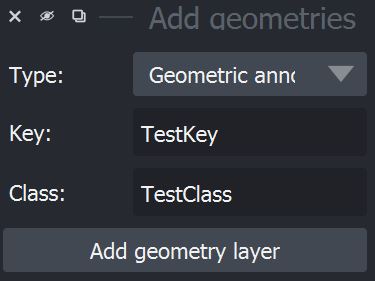

A new annotation layer can be added using the “Add geometries” widget on the bottom right.

../../_images/add_geometries_widget.JPG

As described above, InSituPy differentiates between “regions” and histological “annotations”. Since napari creates separate layers for point and shape annotations, the “annotations” are split further into two subtypes, resulting in a total of three possible geometry types one can chose from:

  1. Geometric annotations
    ../../_images/annotation_layer.jpg

  2. Point annotations
    ../../_images/point_layer.jpg

  3. Region
    ../../_images/region_layer.jpg

Since InSituPy uses different icons to differentiate between the types, it is important to add the geometries via this widget and not via the normal napari annotation panel.

After adding the respective shapes layer, one can now add shapes using the tool box of napari on the top left. E.g. for a geometric annotation, the tool set would look like this:

../../_images/annotation_tools.jpg

After adding the geometries, they can be imported into the InSituPy object using the sync_geometries() function or the "Sync Geometries" button on the bottom right in napari.

# from insitupy.interactive import sync_geometries
# sync_geometries()

xd

InSituData
Method:		Xenium
Slide ID:	0001879
Sample ID:	Replicate 1
Path:		C:\Users\ge37voy\.cache\InSituPy\out\demo_insitupy_project

    ➤ images
       'CD20':     (25778, 35416)
       'HE':       (25778, 35416, 3)
       'HER2':     (25778, 35416)
       'nuclei':   (25778, 35416)
    ➤ cells
       MultiCellData with main layer 'main'
           table
               AnnData object with n_obs × n_vars = 157600 × 297
               obs: 'transcript_counts', 'control_probe_counts', 'control_codeword_counts', 'total_counts', 'cell_area', 'nucleus_area', 'n_genes_by_counts', 'n_genes', 'leiden'
               var: 'gene_ids', 'feature_types', 'genome', 'n_cells_by_counts', 'mean_counts', 'pct_dropout_by_counts', 'total_counts', 'n_cells'
               uns: 'leiden', 'leiden_colors', 'log1p', 'neighbors', 'pca', 'umap'
               obsm: 'X_pca', 'X_umap', 'spatial'
               varm: 'PCs'
               layers: 'counts', 'norm_counts'
               obsp: 'connectivities', 'distances'
           boundaries
               BoundariesData object with 2 entries:
                   cells
                   nuclei
    ➤ annotations
       TestKey:	9 annotations, 2 classes ('TestClass', 'points')

xd.annotations["TestKey"]
objectType geometry name color origin layer_type
id
8bb49fc4-48d3-48ab-8875-6ea26b470f3e annotation POLYGON ((2297.27344 1906.99634, 2231.25684 20... TestClass [255, 0, 0] manual Shapes
d3afe9e9-7db3-4424-b50d-2f57b09938fd annotation POLYGON ((3789.25024 2369.11304, 3630.81006 25... TestClass [255, 0, 0] manual Shapes
53f6ddba-2271-414b-aa4d-d93aa5636183 annotation POLYGON ((4290.97705 1246.82971, 5809.35938 12... TestClass [255, 0, 0] manual Shapes
c6cda9ef-b7de-482e-a450-10a6f5594901 annotation POLYGON ((2059.61353 3332.9563, 3445.96362 333... TestClass [255, 0, 0] manual Shapes
b01561db-4e99-4af4-b4e8-632833a8936e annotation POINT (1696.32066 1670.60799) points [0, 0, 255] manual Points
9d58356c-bcce-46fb-914a-ae5c2c4357ec annotation POINT (1827.00951 1662.33655) points [0, 0, 255] manual Points
e7730609-c607-4864-8e46-cabc2566062e annotation POINT (1881.60106 1600.3007) points [0, 0, 255] manual Points
932bfa09-78bc-43da-b5ab-407a6c257786 annotation POINT (1794.75087 1577.9678) points [0, 0, 255] manual Points
bbc8e569-73bd-401f-84c2-72e72d164f2a annotation POINT (1708.72783 1561.4249) points [0, 0, 255] manual Points

Export annotations or regions#

To export annotations or regions, one can save the AnnotationsData or RegionsData object as .geojson file.

xd.annotations.save(path=CACHE / "out/annotations_export", overwrite=True)

2. Create annotations in QuPath#

To create annotations in QuPath, follow these steps:

  1. Export the registered HE image as OME-TIFF by setting as_zarr=False:

xd.images.save(CACHE / "out/image_export", keys_to_save="HE", as_zarr=False, overwrite=True)

  1. Open the exported image in QuPath and start with the annotations. Documentations on QuPath can be found here.

  2. Select an annotation tool from the bar on the top left:

../../_images/qupath_annotation_buttons.jpg

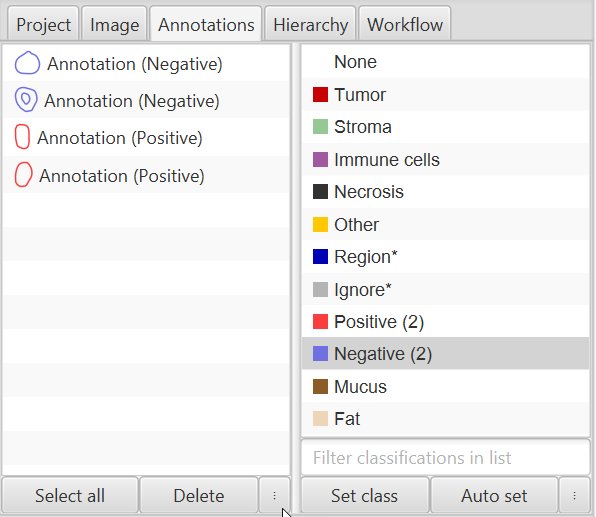

  1. Add as many annotations as you want and label them by setting classes in the annotation list. Do not forget to press the “Set class” button:

../../_images/qupath_annotation_list.jpg

  1. Export annotations using File > Export objects as GeoJSON. Tick Pretty JSON to get an easily readable JSON file. The file name needs to have following structure: annotation-{slide_id}__{sample_id}__{annotation_label}.

Import annotations into InSituData#

For demonstration purposes, we created dummy annotation files in ./demo_annotations/. To add the annotations to InSituData follow the steps below.

3. Create regions in QuPath#

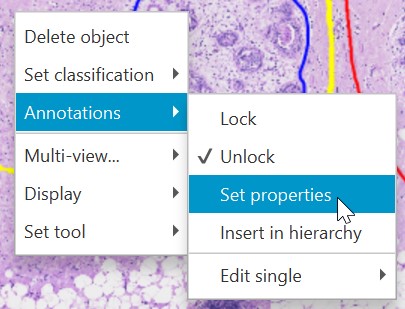

For creating regions, one can use the same annotation tools as described above. But instead of setting a class for the annotation, you can name the region by double-clicking on it, and selecting “Set Properties”:

../../_images/set_properties.jpg

For export, regions can then be selected and exported in the same way as described above for annotations.

Import annotations and regions#

Since annotations could have been done on images with different resolutions, it is important to specify the pixel_size during the import. In standard Xenium experiments the pixel size is 0.2125 µm but if the images were downscaled before the annotation, this value might differ.

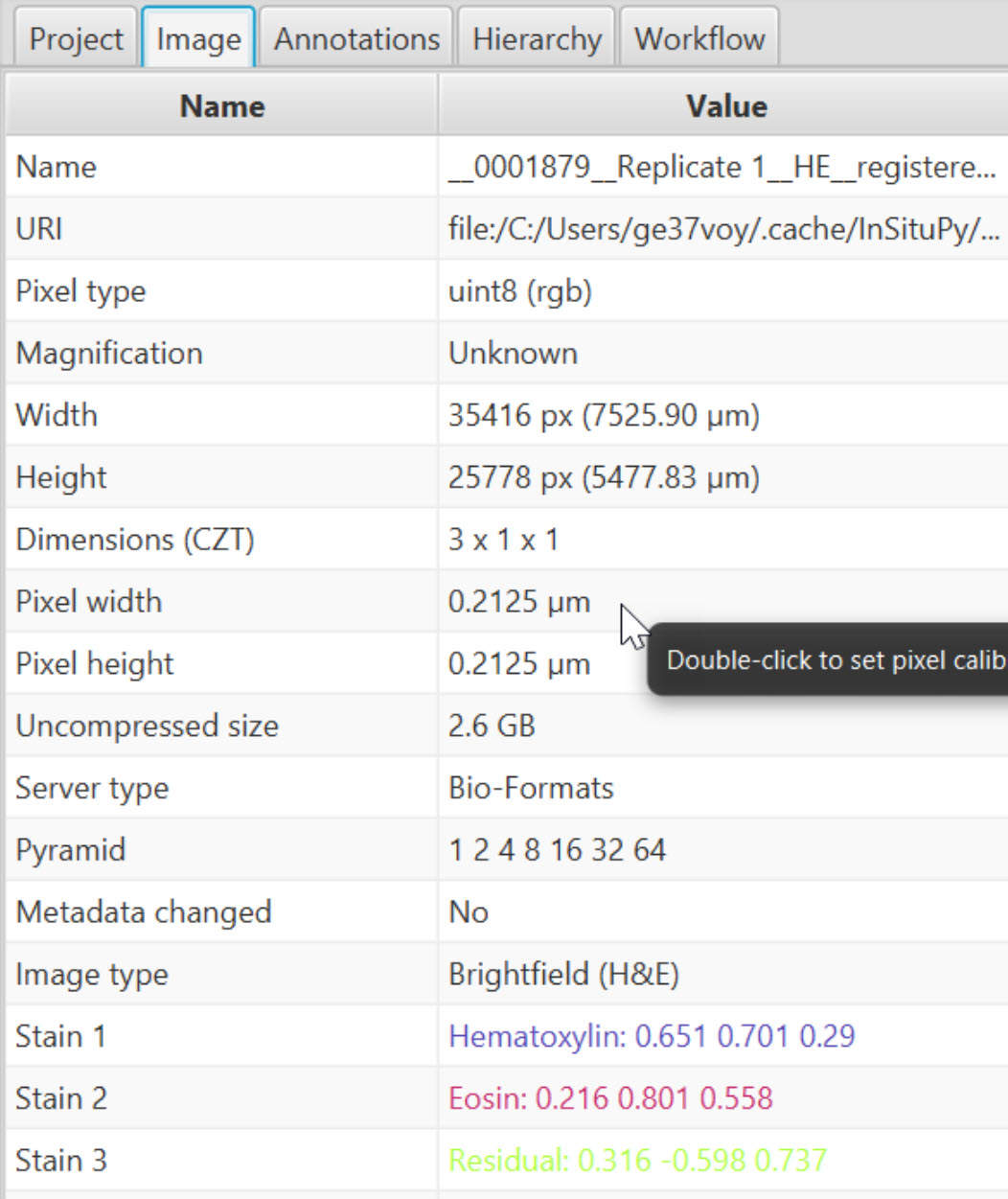

In QuPath the pixel size and other image metadata can be looked up under “Image” and “Pixel width” or “Pixel height”:

../../_images/qupath_properties_window.jpg
xd.import_annotations(
    files=[
        "../../demo_data/demo_annotations/annotations-0001879__Replicate 1__demo.geojson",
        "../../demo_data/demo_annotations/annotations-0001879__Replicate 1__demo2.geojson",
        "../../demo_data/demo_annotations/annotations-mixed_types.geojson"
           ],
    keys=["demo", "demo2", "demo3"],
    scale_factor=0.2125
    )

xd.annotations["demo"]
objectType geometry name color origin layer_type
id
bd3aacca-1716-4df8-91dd-bf8f6413a7bd annotation POLYGON ((1883.3875 2297.975, 1883.3875 2300.1... Positive [250, 62, 62] file Shapes
69814505-4059-42cd-8df2-752f7eb0810d annotation POLYGON ((2782.9 2654.55, 2777.885 2655.0175, ... Positive [250, 62, 62] file Shapes
1957cd32-0a21-4b45-9dae-ecf236217140 annotation POLYGON ((6582.24275 4874.325, 6583.675 4874.3... Negative [112, 112, 225] file Shapes
19d2197a-1b8e-456f-8223-fba74641ac1c annotation POLYGON ((6622.5625 3486.7, 6619.1625 3487.125... Negative [112, 112, 225] file Shapes
xd.annotations["demo2"]
objectType geometry name color origin layer_type
id
1970eccb-ad38-4b4b-b7a8-54509027b57d annotation POLYGON ((5380.2875 827.05, 5379.0125 827.475,... Negative [112, 112, 225] file Shapes
a3b32cce-1bb9-4a6f-b1d1-9e0c44420cfa annotation POLYGON ((6576.875 2306.6875, 6575.6 2307.1125... Positive [250, 62, 62] file Shapes
92bfe928-a21f-4864-b7cb-f0d300113d88 annotation MULTIPOLYGON (((4575.975 4152.4625, 4575.975 4... Other [255, 200, 0] file Shapes
a6c17a54-6839-40b2-8531-c9227635f344 annotation POLYGON ((1381.4625 3639.275, 1380.1875 3639.7... Other [255, 200, 0] file Shapes
e78efe2f-d185-4ab6-9cc9-6621897f3662 annotation POLYGON ((6272.92138 3936.1375, 6263.65 3945.2... Negative [112, 112, 225] file Shapes
xd.annotations["demo3"]
objectType geometry name color origin layer_type
id
8f57c3c3-2216-48b7-99bd-aba12d8c3c41 annotation POLYGON ((3828.4 2261.74375, 3827.8135 2274.22... Stroma [150, 200, 150] file Shapes
7e8f8db4-81d4-472e-8e93-0fc756df87aa annotation POLYGON ((2618.425 1436.075, 2618.07225 1436.1... Stroma [150, 200, 150] file Shapes
38a48ddb-f33c-4c61-b996-330b25d84081 annotation LINESTRING (3600.5575 1648.7535, 3878.03575 13... Necrosis [50, 50, 50] file Shapes
eee244c9-e919-41ae-bb91-44c7abcc0cec annotation LINESTRING (2483.6235 1334.39588, 2855.93412 1... Immune cells [160, 90, 160] file Shapes
e3d4c0b6-0998-4692-ab7d-f580f713e275 annotation POINT (5096.23663 1632.56312) unclassified [0, 0, 0] file Points
e9105240-3b35-489e-994f-e8f9c4786516 annotation MULTIPOINT ((4219.655 1650.71912), (4261.94675... Stroma [150, 200, 150] file Points
2802df97-78ad-44ac-8e6b-d9b9406c8e3f annotation MULTIPOINT ((3372.7915 2005.41562), (3530.0415... Tumor [200, 0, 0] file Points

Load regions#

Regions can be created in QuPath either as described above or using tools like the TMA dearrayer. They are also exported as objects as annotations but different to annotations they do not have a classification and each name of a region has to be unique.

In the following demo regions are read. One of the region files has non-unique names to demonstrate the warning that appears in this case.

In regions classes have to be unique#

When reading an “Annotation” .geojson as shown below, the import_regions function throws an error indicating that in regions only one geometry per class is allowed. Further, only normal polygons (shapely.Polygon-typed) are allowed. Any other types of geometries (Points, Lines, MultiPolygons, …) are skipped.

xd.import_regions(
    files=[
        "../../demo_data/demo_annotations/annotations-mixed_types.geojson"
        ],
    keys=['test'],
    scale_factor=0.2125
    )

Multiple regions can be imported simultaneously.

xd.import_regions(
    files=[
        "../../demo_data/demo_regions/regions-0001879__Replicate 1__demo_regions.geojson",
        "../../demo_data/demo_regions/regions-0001879__Replicate 1__TMA.geojson",
        ],
    keys=['demo_regions', 'TMA'],
    scale_factor=0.2125
    )

Properties of the anotations and regions modalities can be inspected in the InSituData representation:

xd

InSituData
Method:		Xenium
Slide ID:	0001879
Sample ID:	Replicate 1
Path:		C:\Users\ge37voy\.cache\InSituPy\out\demo_insitupy_project

    ➤ images
       'CD20':     (25778, 35416)
       'HE':       (25778, 35416, 3)
       'HER2':     (25778, 35416)
       'nuclei':   (25778, 35416)
    ➤ cells
       MultiCellData with main layer 'main'
           table
               AnnData object with n_obs × n_vars = 157600 × 297
               obs: 'transcript_counts', 'control_probe_counts', 'control_codeword_counts', 'total_counts', 'cell_area', 'nucleus_area', 'n_genes_by_counts', 'n_genes', 'leiden'
               var: 'gene_ids', 'feature_types', 'genome', 'n_cells_by_counts', 'mean_counts', 'pct_dropout_by_counts', 'total_counts', 'n_cells'
               uns: 'leiden', 'leiden_colors', 'log1p', 'neighbors', 'pca', 'umap'
               obsm: 'X_pca', 'X_umap', 'spatial'
               varm: 'PCs'
               layers: 'counts', 'norm_counts'
               obsp: 'connectivities', 'distances'
           boundaries
               BoundariesData object with 2 entries:
                   cells
                   nuclei
    ➤ annotations
       TestKey:	9 annotations, 2 classes ('TestClass', 'points')
       demo:	4 annotations, 2 classes ('Negative', 'Positive')
       demo2:	5 annotations, 3 classes ('Negative', 'Other', 'Positive')
       demo3:	7 annotations, 5 classes ('Immune cells', 'Necrosis', 'Stroma', 'Tumor', 'unclassified')
    ➤ regions
       demo_regions:	3 regions, 3 classes ('Region1', 'Region2', 'Region3')
       TMA:	6 regions, 6 classes ('A-1', 'A-2', 'A-3', 'B-1', 'B-2', 'B-3')

Visualization of annotations and regions using napari viewer#

Ìf the InSituData object only contains .annotations or .regions attributes, one can choose between the “Add geometries” and “Show geometries” widgets:

../../_images/toggle_geometry_widgets.jpg

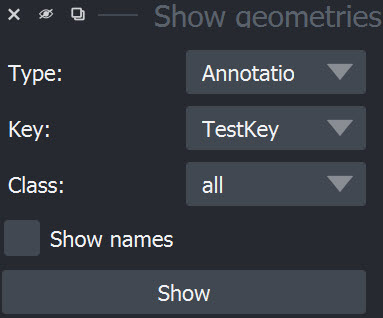

Annotations and regions stored in the InSituData object can be visualized using the “Show geometries” widget:

../../_images/show_geometries_widget.jpg

To show the names of the annotations, tick “Show names”:

../../_images/show_names_example.jpg
xd.show()

INFO: New layer '🌍 Region1 (demo_regions)' created.
INFO: New layer '🌍 Region2 (demo_regions)' created.
INFO: New layer '🌍 Region3 (demo_regions)' created.
INFO: New layer '🌍 B-2 (TMA)' created.
INFO: New layer '🌍 A-3 (TMA)' created.
INFO: New layer '🌍 B-1 (TMA)' created.
INFO: New layer '🌍 B-3 (TMA)' created.
INFO: New layer '🌍 A-1 (TMA)' created.
INFO: New layer '🌍 A-2 (TMA)' created.
INFO: New layer '🔬 Stroma (demo3)' created.
INFO: New layer '🔬 Necrosis (demo3)' created.
INFO: New layer '🔬 Immune cells (demo3)' created.

Assign annotations to observations#

To use the annotations in analyses (e.g. to select only observations within a certain annotation or compare gene expression between different annotations) one can use the assign_annotations function. It adds columns containing the annotation class to xd.matrix.obs. The column has the syntax annotation-{Label} and if an observation is not part of any annotation within this label, it contains NaN.

xd.assign_annotations(overwrite=True)

Using CellData from MultiCellData layer 'main'.
Assigning key 'TestKey'...
Added results to `.cells['main'].table.obsm['annotations']
Assigning key 'demo'...
Added results to `.cells['main'].table.obsm['annotations']
Assigning key 'demo2'...
Added results to `.cells['main'].table.obsm['annotations']
Assigning key 'demo3'...
Added results to `.cells['main'].table.obsm['annotations']

xd.assign_regions()

Using CellData from MultiCellData layer 'main'.
Assigning key 'demo_regions'...
Added results to `.cells['main'].table.obsm['regions']
Assigning key 'TMA'...
Added results to `.cells['main'].table.obsm['regions']

xd

InSituData
Method:		Xenium
Slide ID:	0001879
Sample ID:	Replicate 1
Path:		C:\Users\ge37voy\.cache\InSituPy\out\demo_insitupy_project

    ➤ images
       'CD20':     (25778, 35416)
       'HE':       (25778, 35416, 3)
       'HER2':     (25778, 35416)
       'nuclei':   (25778, 35416)
    ➤ cells
       MultiCellData with main layer 'main'
           table
               AnnData object with n_obs × n_vars = 157600 × 297
               obs: 'transcript_counts', 'control_probe_counts', 'control_codeword_counts', 'total_counts', 'cell_area', 'nucleus_area', 'n_genes_by_counts', 'n_genes', 'leiden'
               var: 'gene_ids', 'feature_types', 'genome', 'n_cells_by_counts', 'mean_counts', 'pct_dropout_by_counts', 'total_counts', 'n_cells'
               uns: 'leiden', 'leiden_colors', 'log1p', 'neighbors', 'pca', 'umap'
               obsm: 'X_pca', 'X_umap', 'spatial', 'annotations', 'regions'
               varm: 'PCs'
               layers: 'counts', 'norm_counts'
               obsp: 'connectivities', 'distances'
           boundaries
               BoundariesData object with 2 entries:
                   cells
                   nuclei
    ➤ annotations
       TestKey:	9 annotations, 2 classes ('TestClass', 'points')
       demo:	4 annotations, 2 classes ('Negative', 'Positive')
       demo2:	5 annotations, 3 classes ('Negative', 'Other', 'Positive')
       demo3:	7 annotations, 5 classes ('Immune cells', 'Necrosis', 'Stroma', 'Tumor', 'unclassified')
    ➤ regions
       demo_regions:	3 regions, 3 classes ('Region1', 'Region2', 'Region3')
       TMA:	6 regions, 6 classes ('A-1', 'A-2', 'A-3', 'B-1', 'B-2', 'B-3')

After assigning the annotations, the already analyzed labels analyzed are marked with a ✔:

xd.regions["demo_regions"]
objectType name geometry origin color layer_type
id
2d0da635-c408-459f-9178-839097fe5a98 annotation Region1 POLYGON ((1564.425 1321.9625, 2267.8 1321.9625... file [255, 0, 0] Shapes
ce6c2342-620d-4f44-be03-68a4454e9b33 annotation Region2 POLYGON ((4541.7625 1356.3875, 5613.825 1356.3... file [255, 0, 0] Shapes
70a125ec-c53e-469b-8927-efe224e504c1 annotation Region3 POLYGON ((2110.7625 2708.3125, 3387.675 2708.3... file [255, 0, 0] Shapes

Following cells show examples how to explore the assigned annotations:

xd.cells.matrix.obsm['annotations']['demo2']

2026-02-23 22:40:51 | [WARNING] The 'matrix' property is deprecated and will be removed in a future version. Please use 'table' instead.

2         unassigned
5         unassigned
8         unassigned
10        unassigned
13        unassigned
             ...
167776    unassigned
167777    unassigned
167778    unassigned
167779    unassigned
167780    unassigned
Name: demo2, Length: 157600, dtype: object

# print number of cells within each annotation
annots = xd.cells.matrix.obsm['annotations']['demo2']
annots.value_counts()

2026-02-23 22:40:51 | [WARNING] The 'matrix' property is deprecated and will be removed in a future version. Please use 'table' instead.

demo2
unassigned    148458
Negative        4839
Other           2605
Positive        1698
Name: count, dtype: int64

# show geopandas dataframe for one annotation
xd.annotations["demo2"]
objectType geometry name color origin layer_type
id
1970eccb-ad38-4b4b-b7a8-54509027b57d annotation POLYGON ((5380.2875 827.05, 5379.0125 827.475,... Negative [112, 112, 225] file Shapes
a3b32cce-1bb9-4a6f-b1d1-9e0c44420cfa annotation POLYGON ((6576.875 2306.6875, 6575.6 2307.1125... Positive [250, 62, 62] file Shapes
92bfe928-a21f-4864-b7cb-f0d300113d88 annotation MULTIPOLYGON (((4575.975 4152.4625, 4575.975 4... Other [255, 200, 0] file Shapes
a6c17a54-6839-40b2-8531-c9227635f344 annotation POLYGON ((1381.4625 3639.275, 1380.1875 3639.7... Other [255, 200, 0] file Shapes
e78efe2f-d185-4ab6-9cc9-6621897f3662 annotation POLYGON ((6272.92138 3936.1375, 6263.65 3945.2... Negative [112, 112, 225] file Shapes

Save imported annotations in InSituPy project#

xd.save()

Saving to existing path: C:\Users\ge37voy\.cache\InSituPy\out\demo_insitupy_project
Updating project in C:\Users\ge37voy\.cache\InSituPy\out\demo_insitupy_project
	Updating cells...
	Updating annotations...
	Updating regions...
Saved.
