Build an InSituData object from custom data#
This notebook demonstrates how to build an InSituData object from scratch using dummy data. This hopefully helps to understand how to load custom data into the framework. Since every technology has different output files, the way how to load the data into the right format can vary between technologies. If you have problems with this, please write an issue and we will try to help you with it.
## The following code ensures that all functions and init files are reloaded before executions.
%load_ext autoreload
%autoreload 2
from pathlib import Path
from typing import Literal
import numpy as np
import matplotlib.pyplot as plt
import anndata as ad
import geopandas as gpd
import dask.array as da
from shapely.geometry import Polygon
from insitupy import InSituData
from insitupy._core.dataclasses import CellData, BoundariesData, ImageData, AnnotationsData, RegionsData, MultiCellData
import cv2
from uuid import uuid4
import random
import string
Let’s start by generating main modalities and adding them into InSituData#
Below you can find all functions used to generate the dummy code
# Function to generate a random H&E-like image
def generate_random_he_image(width, height):
# Hematoxylin (blue-purple) and Eosin (pink) color ranges
hematoxylin_color = np.array([102, 51, 153], dtype=np.uint8) # Scaled to 0-255 range
eosin_color = np.array([255, 204, 204], dtype=np.uint8) # Scaled to 0-255 range
# hematoxylin_color = np.array([0.4, 0.2, 0.6])
# eosin_color = np.array([1.0, 0.8, 0.8])
# random_image = np.random.rand(width, height, 3)
random_image = np.random.randint(0, 256, (width, height, 3), dtype=np.uint8)
he_image = random_image * hematoxylin_color // 255 + (255 - random_image) * eosin_color // 255
# he_image = random_image * hematoxylin_color + (1 - random_image) * eosin_color
return he_image
# Function to generate a random grayscale DAPI-like image
def generate_random_dapi_image(width, height):
# DAPI (blue) color range in grayscale
dapi_color = np.array([0.1, 0.1, 0.8])
random_image = np.random.rand(width, height)
dapi_image = random_image * dapi_color[2] # Use the blue channel for grayscale
return dapi_image
def generate_random_gene_names(length):
letters = string.ascii_uppercase
random_order = ''.join(random.choices(letters, k=length))
return random_order
def generate_dummy_anndata(
width,
height,
n_cells,
num_genes = 400,
pixel_size = 0.2125
):
# In the next step we generate an `AnnData` object with respective spatial coordinates and a `Dask` Array with cellular boundaries for the respective cells.
pixel_coordinates = np.random.rand(n_cells, 2) * [width, height]
# Convert pixel coordinates to micrometers (1 pixel = 0.2125 micrometers)
micrometer_coordinates = pixel_coordinates * pixel_size
# Generate random gene expression counts matrix (n_cells x num_genes)
gene_counts = np.random.poisson(lam=5, size=(n_cells, num_genes))
# Create an AnnData object with gene expression counts and spatial coordinates
adata = ad.AnnData(X=gene_counts)
adata.obsm['spatial'] = micrometer_coordinates
# Example observations (metadata)
obs_data = {
'cell_type': ['type1', 'type2'] * (n_cells // 2), # Example cell types
'batch': ['batch1'] * (n_cells // 2) + ['batch2'] * (n_cells // 2) # Example batch information
}
# Add observations to the obs attribute
adata.obs = adata.obs.assign(**obs_data)
# add cell names
adata.obs_names = [str(elem) for elem in range(1, n_cells+1)]
# add gene names
adata.var_names = [generate_random_gene_names(length=5) for _ in range(len(adata.var_names))]
return adata
def generate_cellular_boundaries_array(width, height, cell_positions, pixel_size, cell_size):
# Create an empty mask
mask = np.zeros((height, width), dtype=np.uint8)
# Create random roundish shapes
seg_mask_value = []
for i, (x, y) in enumerate(cell_positions/pixel_size):
num_points = np.random.randint(5, 15) # Random number of points
points = np.random.randint(-cell_size, cell_size, (num_points, 2)) + [x, y]
hull = cv2.convexHull(points.astype(np.int32))
value = i+1
cv2.fillConvexPoly(mask, hull, value)
seg_mask_value.append(value)
# Convert the NumPy array to a Dask array with chunks
#dask_array = da.from_array(mask, chunks=(50, 50))
#return dask_array, seg_mask_value
return mask, seg_mask_value
# Function to generate random polygons
def generate_random_geometries(num_polygons, x_size, y_size, pixel_size, mode: Literal["region", "annotation"]):
polygons = []
attempts = 0
max_attempts = num_polygons * 10 # Limit the number of attempts to avoid infinite loop
while len(polygons) < num_polygons and attempts < max_attempts:
# Generate random center point
center_x = np.random.uniform(0, x_size*pixel_size)
center_y = np.random.uniform(0, y_size*pixel_size)
# Generate random size for the polygon
size = np.random.uniform(10, 20)
# Create a square polygon around the center point
polygon = Polygon([
(center_x - size, center_y - size),
(center_x + size, center_y - size),
(center_x + size, center_y + size),
(center_x - size, center_y + size)
])
# Check if the new polygon intersects with any existing polygons
if not any(polygon.intersects(existing_polygon) for existing_polygon in polygons):
polygons.append(polygon)
attempts += 1
if mode == "annotation":
# Create GeoDataFrame with random polygons
result_df = gpd.GeoDataFrame(geometry=polygons)
result_df["id"] = [uuid4() for _ in range(len(result_df))]
result_df["name"] = ['annotation1'] * (num_polygons // 2) + ['annotation2'] * (num_polygons - (num_polygons // 2))
if mode == "region":
# Create GeoDataFrame with random polygons
result_df = gpd.GeoDataFrame(geometry=polygons)
result_df["id"] = [uuid4() for _ in range(len(result_df))]
result_df["name"] = result_df.index
return result_df
# Function to generate a random H&E-like image with a scale of 0-255 and uint8
def generate_random_he_image(height, width):
# Hematoxylin (blue-purple) and Eosin (pink) color ranges in 0-255 scale
hematoxylin_color = np.array([102, 51, 153])
eosin_color = np.array([255, 204, 204])
random_image = np.random.rand(height, width, 3)
he_image = random_image * hematoxylin_color + (1 - random_image) * eosin_color
# Convert the image to uint8
he_image_uint8 = he_image.astype(np.uint8)
return he_image_uint8
def generate_random_grayscale_image(height, width):
# Generate a random grayscale image
random_image = np.random.rand(height, width) * 255
# Convert the image to uint8
grayscale_image_uint8 = random_image.astype(np.uint8)
return grayscale_image_uint8
Now we use these functions to set up the dummy dataset step by step#
First we specify the parameters for the dummy dataset
# parameters
pixel_size = 0.2125
height_um = 100 # µm
width_um = 100 # µm
height = int(height_um / pixel_size) # pixel width
width = int(width_um / pixel_size) # pixel width
n_cells = 10
num_genes = 20
cell_size = 50
First, let’s generate an H&E-like image as numpy.array#
# Example usage
he_image = generate_random_he_image(height, width)
# Example usage
dapi_image = generate_random_grayscale_image(height, width)
print(type(he_image))
print(he_image.shape)
<class 'numpy.ndarray'>
(470, 470, 3)

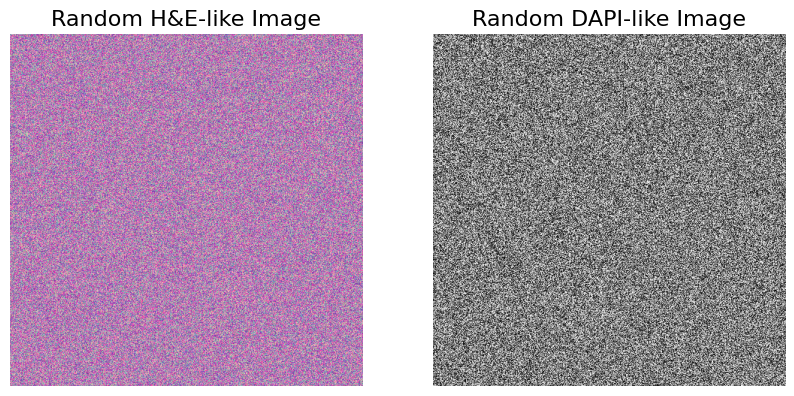

# Display the generated images
plt.figure(figsize=(10, 5))
plt.subplot(1, 2, 1)
plt.imshow(he_image)
plt.title("Random H&E-like Image")
plt.axis('off')
plt.subplot(1, 2, 2)
plt.imshow(dapi_image, cmap='gray')
plt.title("Random DAPI-like Image")
plt.axis('off')
plt.show()
Generate AnnData object containing single-cell transcriptomic data#
In this step we generate an AnnData object with the spatial coordinates saved in .obsm["spatial"] and a numpy Array with the boundaries of the cells.
The segmentation mask is a 2D array with 0 as background value and integer values ascending from 1 for each individual cell. The seg_mask_value variable is a list of these integer values. It serves as a link between the names of the cells (found in adata.obs_names) and their corresponding numbers in the segmentation mask. So, if you have a cell named “Cell_A” in adata.obs_names, seg_mask_value will tell you which number in the segmentation mask represents “Cell_A”.
# generate random anndata
adata = generate_dummy_anndata(width=width, height=height, n_cells=n_cells, num_genes=num_genes, pixel_size=pixel_size)
print(adata)
AnnData object with n_obs × n_vars = 10 × 20
obs: 'cell_type', 'batch'
obsm: 'spatial'
# generate random boundaries mask
cellular_boundaries_array, seg_mask_value = generate_cellular_boundaries_array(
width=width, height=height,
cell_positions=adata.obsm["spatial"],
pixel_size=pixel_size, cell_size=cell_size)
print(type(cellular_boundaries_array))
print(cellular_boundaries_array)
print(type(seg_mask_value))
print(seg_mask_value)
<class 'numpy.ndarray'>
[[0 0 0 ... 0 0 0]
[0 0 0 ... 0 0 0]
[0 0 0 ... 0 0 0]
...
[0 0 0 ... 0 0 0]
[0 0 0 ... 0 0 0]
[0 0 0 ... 0 0 0]]
<class 'list'>
[1, 2, 3, 4, 5, 6, 7, 8, 9, 10]

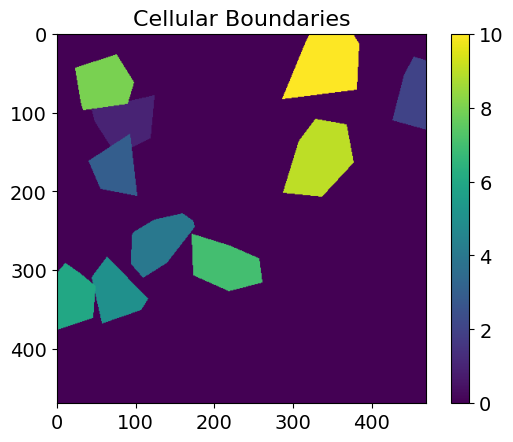

# Plot the boundaries
plt.imshow(cellular_boundaries_array, cmap='viridis')
plt.title("Cellular Boundaries")
plt.colorbar()
plt.show()
Let’s also generate example annotations and regions#
Here, we setup the annotations from scratch as geopandas.DataFrame. Alternatively, they can be imported from QuPath as geojson files as explained in the annotations notebook.
# generate random annotations and regions
gdf_annotations = generate_random_geometries(num_polygons=5, x_size=height, y_size=width, pixel_size=pixel_size, mode="annotation")
gdf_regions = generate_random_geometries(num_polygons=5, x_size=height, y_size=width, pixel_size=pixel_size, mode="region")
print(type(gdf_annotations))
print(gdf_annotations)
print(type(gdf_regions))
print(gdf_regions)
<class 'geopandas.geodataframe.GeoDataFrame'>
geometry \
0 POLYGON ((12.078 31.317, 33.483 31.317, 33.483...
1 POLYGON ((42.716 47.088, 68.69 47.088, 68.69 7...
2 POLYGON ((83.787 78.703, 105.788 78.703, 105.7...
3 POLYGON ((10.448 75.606, 36.827 75.606, 36.827...
4 POLYGON ((79.377 21.447, 103.86 21.447, 103.86...
id name
0 9af39d84-bf8f-4d6e-b7a2-959ad7b28e4d annotation1
1 833ab68a-0b11-4535-9278-2d9e1327ffa7 annotation1
2 ef5b9016-4978-4c77-b997-17e4ba56af12 annotation2
3 1a78a651-e25d-441f-8180-5905cd2e5390 annotation2
4 e024f121-8a98-43a5-8cf2-63dbbea13e70 annotation2
<class 'geopandas.geodataframe.GeoDataFrame'>
geometry \
0 POLYGON ((-10.526 20.984, 22.347 20.984, 22.34...
1 POLYGON ((51.667 19.618, 89.454 19.618, 89.454...
2 POLYGON ((59.808 69.192, 81.611 69.192, 81.611...
3 POLYGON ((14.102 58.167, 40.174 58.167, 40.174...
4 POLYGON ((30.254 6.58, 50.944 6.58, 50.944 27....
id name
0 2747e82d-9b00-423a-b95a-b16a5bb7cbcf 0
1 fed0742e-71b1-4b46-9a45-1382c7c97797 1
2 2b3f55b0-25c4-4ea6-8b3e-293d731115ce 2
3 40e9aec1-ed0b-45d0-8214-a40f57a70764 3
4 5c0fbbfc-032a-4c2d-b746-3e9f8750a243 4

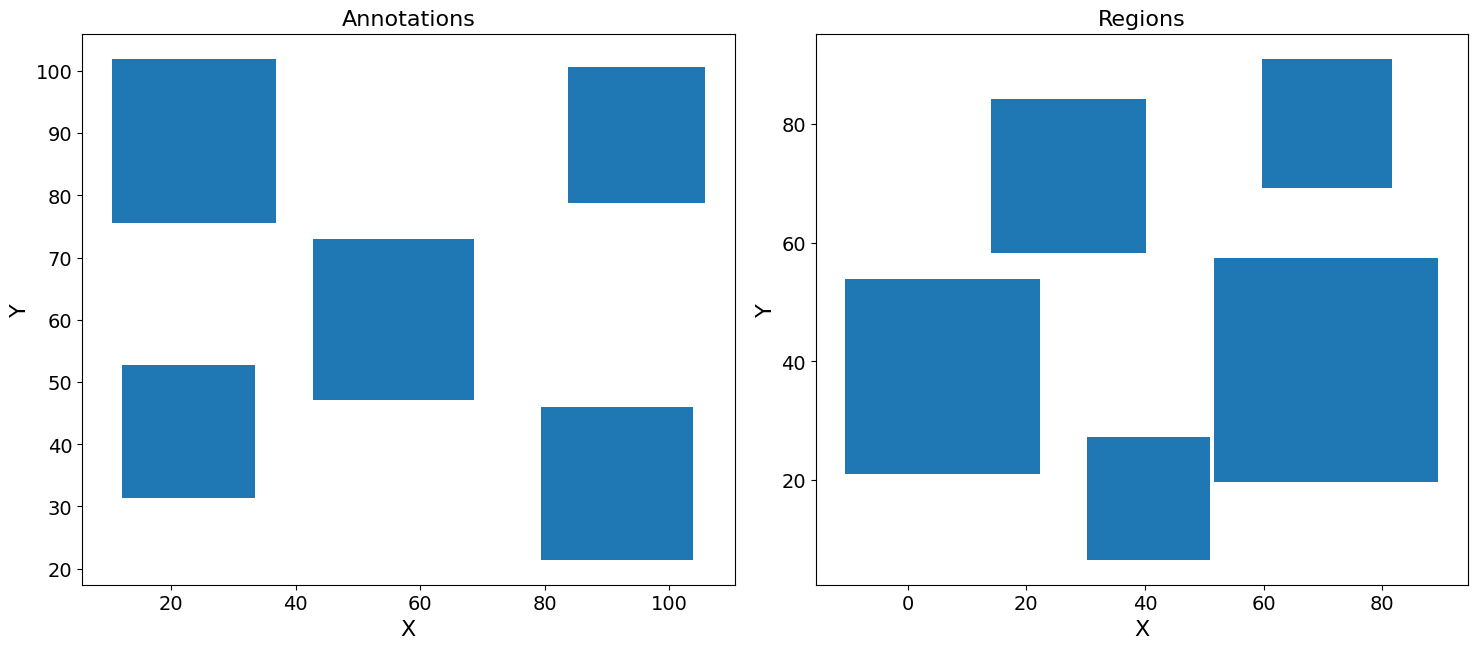

# Plot the annotations and regions
fig, axes = plt.subplots(nrows=1, ncols=2, figsize=(15, 7))
gdf_annotations.plot(ax=axes[0])
axes[0].set_title("Annotations")
axes[0].set_xlabel("X")
axes[0].set_ylabel("Y")
gdf_regions.plot(ax=axes[1])
axes[1].set_title("Regions")
axes[1].set_xlabel("X")
axes[1].set_ylabel("Y")
plt.tight_layout()
plt.show()
Finally we create an InSituData object with all the modalities we have generated before#
xd = InSituData(
path=Path("dummy_path"),
metadata={
"method": "Xenium"
},
slide_id="slide",
sample_id="sample_1",
from_insitudata=False
)
xd
InSituData
Method: Xenium
Slide ID: slide
Sample ID: sample_1
Path: C:\Users\ge37voy\Github\InSituPy\docs\source\tutorials\sample_level\dummy_path
Metadata file: None
No modalities loaded.
Then we add the data in the correct format. A CellData object consists of (i) the transcriptomic data as AnnData object and (ii) the cellular and/or nuclear boundaries as BoundariesData object.
# set up the boundaries data object
bd = BoundariesData(cell_names=adata.obs_names.astype(str), seg_mask_value=seg_mask_value)
bd.add_boundaries(cell_boundaries=cellular_boundaries_array, pixel_size=pixel_size)
# set up the object for the cellular data based on the anndata object and the boundaries object
cd = CellData(matrix=adata, boundaries=bd)
xd.cells = MultiCellData()
xd.cells.add_celldata(cd=cd, key="main", is_main=True)
xd
InSituData
Method: Xenium
Slide ID: slide
Sample ID: sample_1
Path: C:\Users\ge37voy\Github\InSituPy\docs\source\tutorials\sample_level\dummy_path
Metadata file: None
➤ cells
MultiCellData with main layer 'main'
matrix
AnnData object with n_obs × n_vars = 10 × 20
obs: 'cell_type', 'batch'
obsm: 'spatial'
boundaries
BoundariesData object with 2 entries:
cells
xd.cells.matrix
AnnData object with n_obs × n_vars = 10 × 20
obs: 'cell_type', 'batch'
obsm: 'spatial'
xd.cells.boundaries
BoundariesData object with 2 entries:
cells
xd.cells.boundaries["cells"]
|
||||||||||||||||
Images are stored in an ImageData object:
# add an empty ImageData object and add the generated images
xd.images = ImageData()
xd.images.add_image(image=he_image, name="H&E", axes="YXS", pixel_size=pixel_size, ome_meta={'PhysicalSizeX': pixel_size})
xd.images.add_image(image=dapi_image, name="nuclei", axes="YX", pixel_size=pixel_size, ome_meta={'PhysicalSizeX': pixel_size})
… and annotations and regions as AnnotationsData or RegionsData, respectively.
# add the annotations and regions data
xd.annotations = AnnotationsData()
xd.annotations.add_data(gdf_annotations, key="example_annotation", scale_factor=1)
xd.regions = RegionsData()
xd.regions.add_data(gdf_regions, key="example_regions", scale_factor=1)
xd
InSituData
Method: Xenium
Slide ID: slide
Sample ID: sample_1
Path: C:\Users\ge37voy\Github\InSituPy\docs\source\tutorials\sample_level\out\dummy_data
Metadata file: .ispy
➤ images
H&E: (470, 470, 3)
nuclei: (470, 470)
➤ cells
MultiCellData with main layer 'main'
matrix
AnnData object with n_obs × n_vars = 10 × 20
obs: 'cell_type', 'batch'
obsm: 'spatial'
boundaries
BoundariesData object with 2 entries:
cells
➤ annotations
example_annotation: 5 annotations, 2 classes ('annotation1','annotation2')
➤ regions
example_regions: 5 regions, 5 classes ('0','1','2','3','4')
Save the data into an InSituPy project#
savepath = 'out/dummy_data'
xd.saveas(savepath, overwrite=True)
Saving data to out\dummy_data
Saved.
Reload data#
xd = InSituData.read(savepath)
xd.load_all()
Visualize the data using the napari viewer#
xd.show()
