Differential gene expression and GO term enrichment analysis

## The following code ensures that all functions and init files are reloaded before executions.
%load_ext autoreload
%autoreload 2

from pathlib import Path
from insitupy import InSituData, CACHE

import warnings
warnings.simplefilter(action='ignore', category=FutureWarning)

Load Xenium data into InSituData object

Now the Xenium data can be parsed by providing the data path to the InSituPy project folder.

insitupy_project = Path(CACHE / "out/demo_insitupy_project")

xd = InSituData.read(insitupy_project)

xd.load_images()
xd.load_cells()

xd

InSituData
Method:		Xenium
Slide ID:	0001879
Sample ID:	Replicate 1
Path:		C:\Users\ge37voy\.cache\InSituPy\out\demo_insitupy_project
Metadata file:	.ispy
    ➤ images
       nuclei:	(25778, 35416)
       CD20:	(25778, 35416)
       HER2:	(25778, 35416)
       HE:	(25778, 35416, 3)
    ➤ cells
       MultiCellData with main layer 'main'
           matrix
               AnnData object with n_obs × n_vars = 156447 × 297
               obs: 'transcript_counts', 'control_probe_counts', 'control_codeword_counts', 'total_counts', 'cell_area', 'nucleus_area', 'n_genes_by_counts', 'n_genes', 'leiden', 'cell_type_dc', 'cell_type_dc_sub', 'cell_type_tacco', 'cell_type_publ'
               var: 'gene_ids', 'feature_types', 'genome', 'n_cells_by_counts', 'mean_counts', 'pct_dropout_by_counts', 'total_counts', 'n_cells'
               uns: 'cell_type_dc_colors', 'cell_type_dc_sub', 'cell_type_dc_sub_colors', 'cell_type_publ_colors', 'cell_type_tacco_colors', 'counts_location', 'leiden', 'leiden_colors', 'log1p', 'neighbors', 'pca', 'umap'
               obsm: 'OT', 'X_pca', 'X_umap', 'annotations', 'ora_estimate', 'ora_pvals', 'regions', 'spatial'
               varm: 'OT', 'PCs'
               layers: 'counts', 'norm_counts'
               obsp: 'connectivities', 'distances'
           boundaries
               BoundariesData object with 2 entries:
                   cells
                   nuclei

xd.import_annotations(
    files="../../demo_data/demo_annotations/demo_annotations.geojson",
    keys="Demo",
    scale_factor=0.2125
)

xd.import_regions(
    files="../../demo_data/demo_regions/demo_regions.geojson",
    keys="Demo",
    scale_factor=0.2125
)

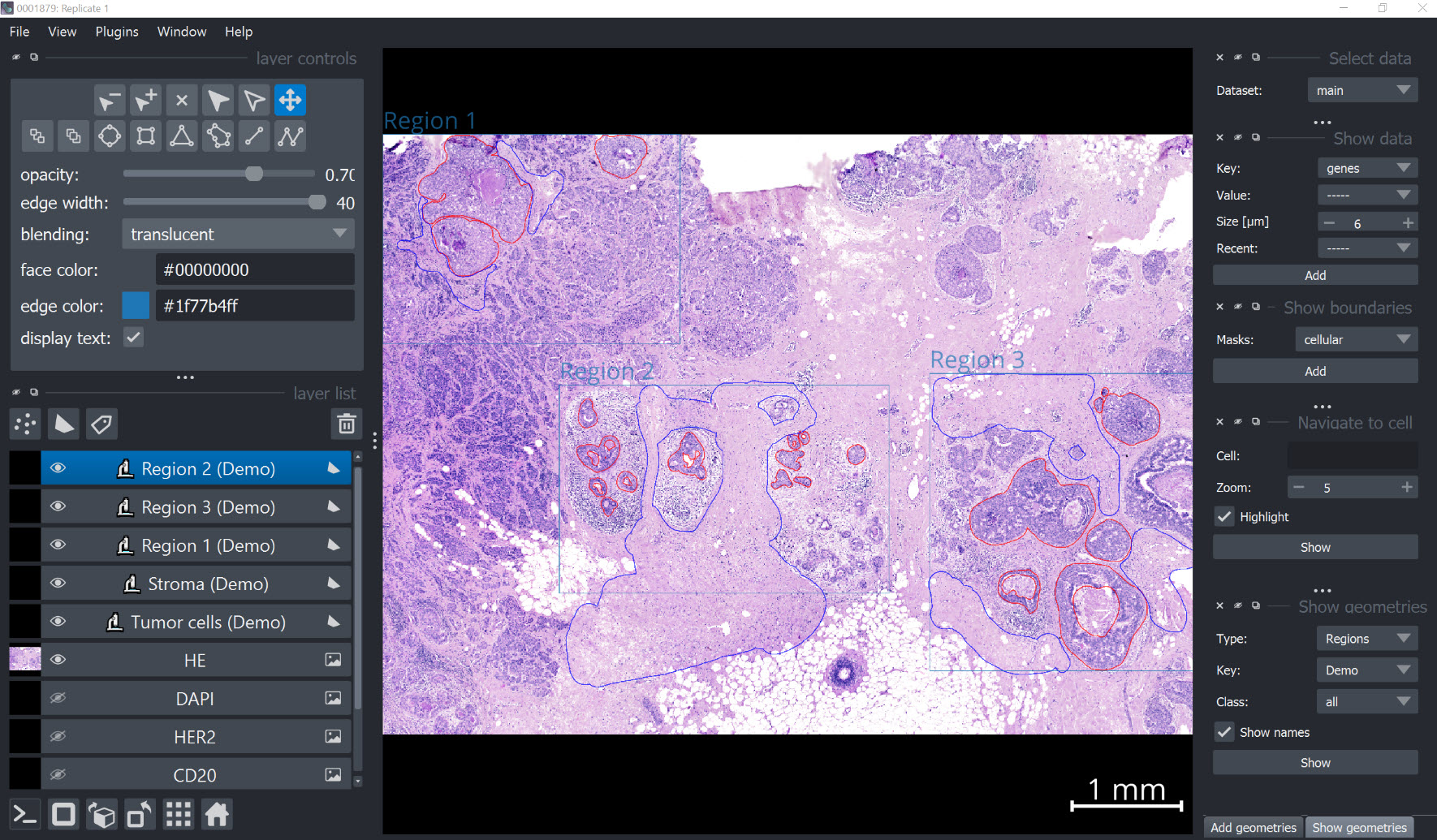

Visualize annotations

xd.show()

Perform sample-level differential gene expression analysis using InSituData

from insitupy import differential_gene_expression

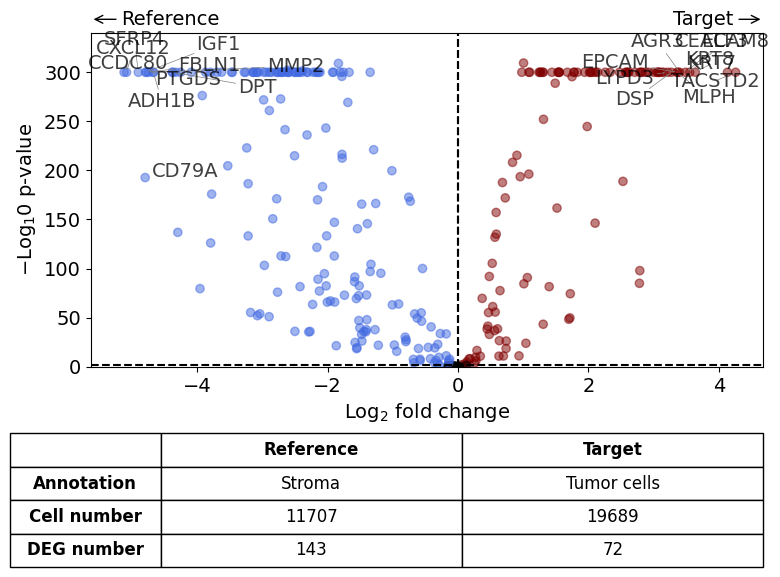

Scenario 1: Comparison of two annotations within one dataset

differential_gene_expression(
    target=xd,
    target_annotation_tuple=("Demo", "Tumor cells"),
    ref_annotation_tuple=("Demo", "Stroma"),
    ref=None,
    exclude_ambiguous_assignments=True,
    label_top_n=10
)

Exclude ambiguously assigned cells...
Calculate differentially expressed genes with Scanpy's `rank_genes_groups` using 't-test'.

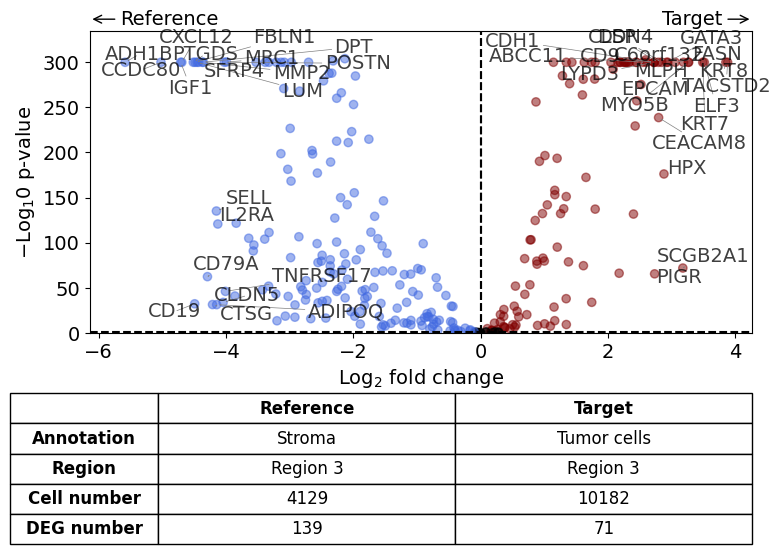

Scenario 2: Comparison of two annotations within one dataset - restrict analysis to a specific region

differential_gene_expression(
    target=xd,
    target_annotation_tuple=("Demo", "Tumor cells"),
    ref_annotation_tuple=("Demo", "Stroma"),
    ref=None,
    target_region_tuple=("Demo", "Region 3"),
    ref_region_tuple="same",
    exclude_ambiguous_assignments=True, # if a cell is assigned to both the annotation and the reference, it is used only for the annotation
)

Calculate differentially expressed genes with Scanpy's `rank_genes_groups` using 't-test'.

Experiment-level differential gene expression analysis

The clear structure of InSituExperiment lets us easily plan complex differential gene expression analysis across multiple samples. In the following, different Scenarios are shown how this can be done.

For more information on the InSituExperiment object see here.

Creating InSituExperiment object

In a first step the region annotations are used to split the dataset and create a InSituExperiment object.

from insitupy import InSituExperiment

exp = InSituExperiment.from_regions(
    data=xd,
    region_key="Demo",
    region_names=None # defaults to all regions
)
exp

Region 1
Region 2
Region 3

InSituExperiment with 3 samples:
           uid  CITAR slide_id    sample_id region_key region_name
0     1f0eed77  ++-++  0001879  Replicate 1       Demo    Region 1
1     4ecdc534  ++-++  0001879  Replicate 1       Demo    Region 2
2     585fc41e  ++-++  0001879  Replicate 1       Demo    Region 3

Scenario 1: Comparison of cell types between two samples

Scenario 1.1: Using the InSituData objects

First, the datasets of interest are extracted from the InSituExperiment object and subsequently processed using the differential_gene_expression function. In contrast to the previous examples we use now two different datasets.

xd0 = exp.data[0]
xd1 = exp.data[1]
xd2 = exp.data[2]

exp

InSituExperiment with 3 samples:
           uid  CITAR slide_id    sample_id region_key region_name
0     1f0eed77  ++-++  0001879  Replicate 1       Demo    Region 1
1     4ecdc534  ++-++  0001879  Replicate 1       Demo    Region 2
2     585fc41e  ++-++  0001879  Replicate 1       Demo    Region 3

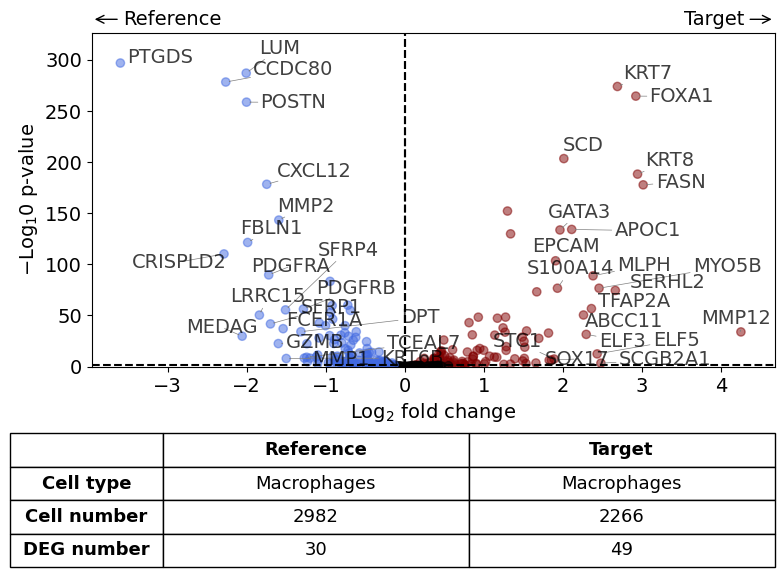

With one reference dataset

differential_gene_expression(
    target=xd0,
    ref=xd1,
    target_cell_type_tuple=("cell_type_dc_sub", "Macrophages"),
    ref_cell_type_tuple="same",
    exclude_ambiguous_assignments=False, # in this case we are sure that there
)

Calculate differentially expressed genes with Scanpy's `rank_genes_groups` using 't-test'.

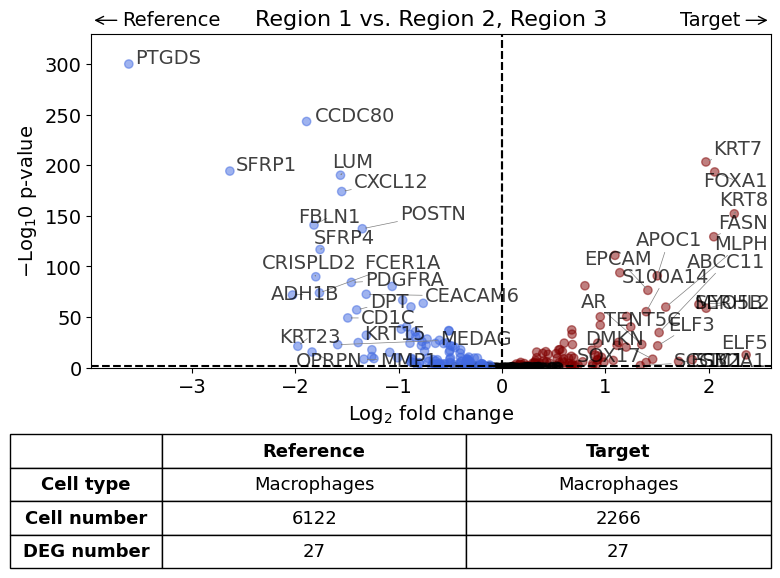

With list of reference datasets

differential_gene_expression(
    target=xd0,
    ref=[xd1, xd2],
    target_cell_type_tuple=("cell_type_dc_sub", "Macrophages"),
    ref_cell_type_tuple="same",
    exclude_ambiguous_assignments=False, # if a cell is assigned to both the annotation and the reference, it is used only for the annotation
)

Calculate differentially expressed genes with Scanpy's `rank_genes_groups` using 't-test'.

Scenario 1.2: Using the InSituExperiment objects

Instead of extracting the InSituData objects first, we can also perform the DGE analysis directly on the InSituExperiment object using its dge() function.

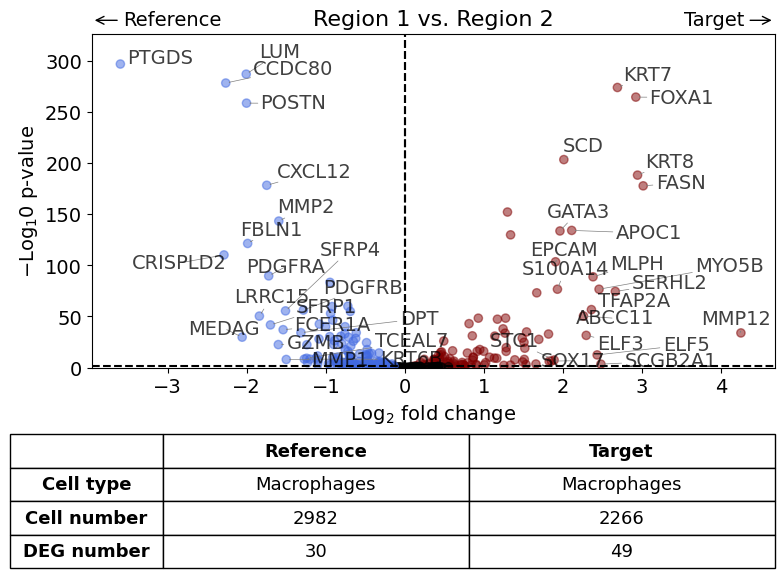

With one reference dataset

exp.dge(
    target_id=0,
    ref_id=1,
    target_cell_type_tuple=("cell_type_dc_sub", "Macrophages"),
    ref_cell_type_tuple="same",
    exclude_ambiguous_assignments=False,
    name_col="region_name"
)

Calculate differentially expressed genes with Scanpy's `rank_genes_groups` using 't-test'.

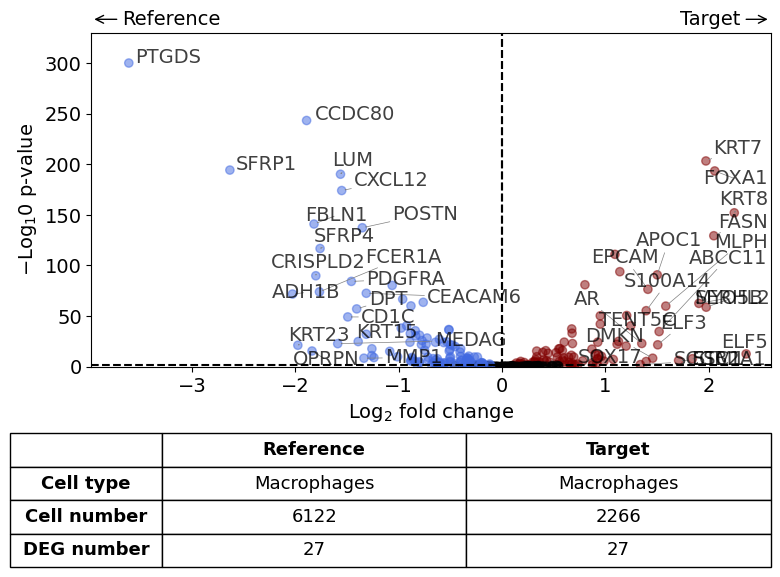

With list of reference datasets

exp.dge(
    target_id=0,
    ref_id=[1,2],
    target_cell_type_tuple=("cell_type_dc_sub", "Macrophages"),
    ref_cell_type_tuple="same",
    name_col="region_name"
)

Calculate differentially expressed genes with Scanpy's `rank_genes_groups` using 't-test'.

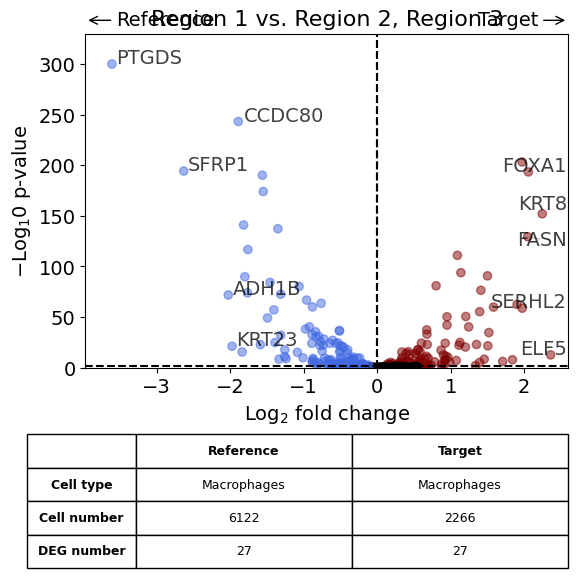

Against all other datasets as reference using "rest" argument

This should result in the same plot than the previous analysis

exp.dge(
    target_id=0,
    ref_id="rest",
    target_cell_type_tuple=("cell_type_dc_sub", "Macrophages"),
    ref_cell_type_tuple="same",
    exclude_ambiguous_assignments=True,
    name_col="region_name",
    figsize=(6,6),
    label_top_n=5,
    savepath="figures/dge_demo_region1_vs_rest.pdf"
)

Calculate differentially expressed genes with Scanpy's `rank_genes_groups` using 't-test'.
Saving figure to file figures/dge_demo_region1_vs_rest.pdf
Saved.

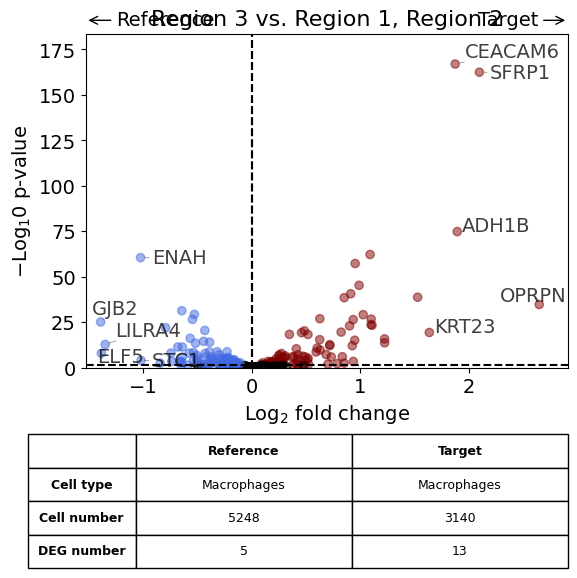

exp.dge(
    target_id=2,
    ref_id="rest",
    target_cell_type_tuple=("cell_type_dc_sub", "Macrophages"),
    ref_cell_type_tuple="same",
    exclude_ambiguous_assignments=True,
    name_col="region_name",
    figsize=(6,6),
    label_top_n=5,
    savepath="figures/dge_demo_region3_vs_rest.pdf"
)

Calculate differentially expressed genes with Scanpy's `rank_genes_groups` using 't-test'.
Saving figure to file figures/dge_demo_region3_vs_rest.pdf
Saved.

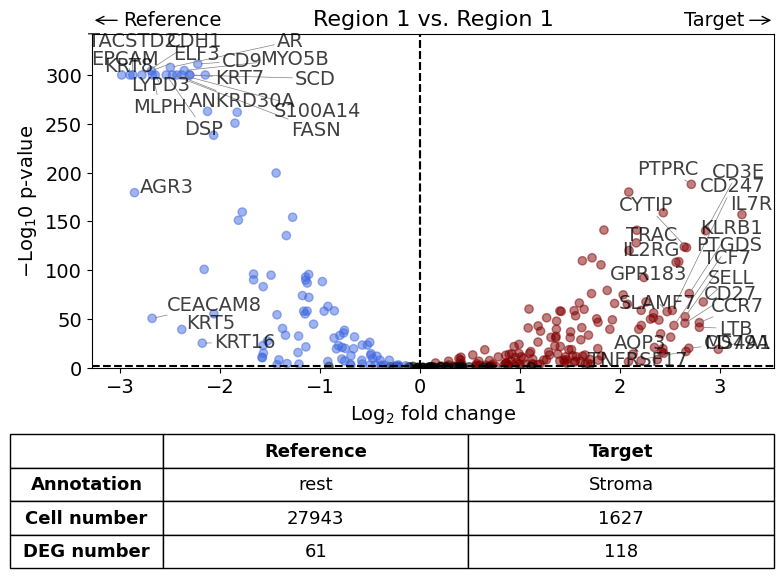

Scenario 2: Comparison of cells within one annotation against all other cells - all within the same dataset

Scenario 2.1: Perform analysis taking all cell types together

This scenario is only uses one dataset but also works on the InSituExperiment level. The name_col argument can be used to specify which column of the metadata should be used for generating the title.

exp.dge(
    target_id=0,
    target_annotation_tuple=("Demo", "Stroma"),
    ref_annotation_tuple="rest",
    exclude_ambiguous_assignments=True,
    name_col="region_name",
)

Exclude ambiguously assigned cells...
Calculate differentially expressed genes with Scanpy's `rank_genes_groups` using 't-test'.

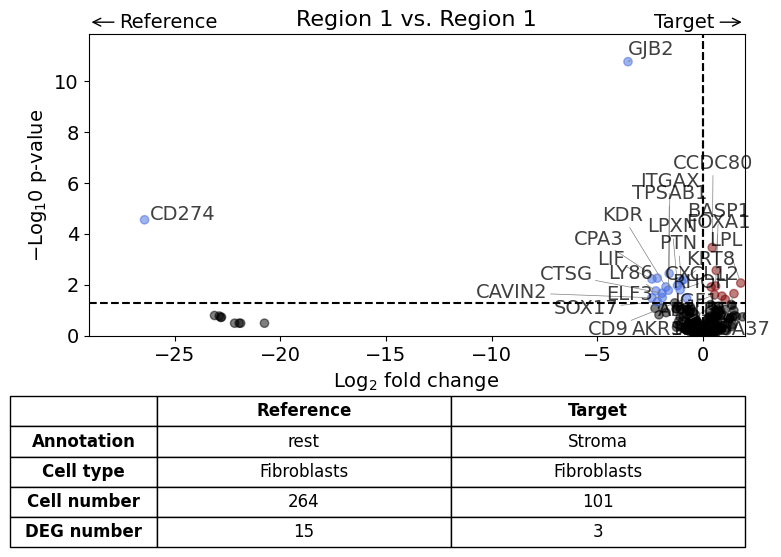

Scenario 2: Comparison of cells within one annotation against all other cells - all within the same dataset but restricted to one cell type

Scenario 2.1: Perform analysis for one cell type only

This scenario is very similar to the first but the analysis is restricted to only one cell type (in this case Fibroblasts).

exp.dge(
    target_id=0,
    target_annotation_tuple=("Demo", "Stroma"),
    ref_annotation_tuple="rest",
    target_cell_type_tuple=("cell_type_dc", "Fibroblasts"),
    ref_cell_type_tuple="same",
    name_col="region_name",
)

Calculate differentially expressed genes with Scanpy's `rank_genes_groups` using 't-test'.

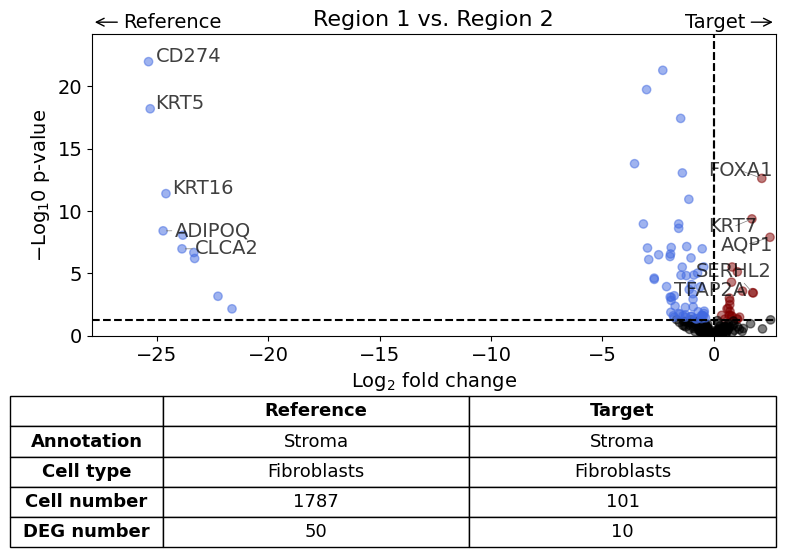

Scenario 3: Comparison of two annotations between two regions or datasets - restrict analysis to one cell type

Here we compare the gene expression of one particular cell type (fibroblasts) in one histological annotation (Stroma) between two datasets. Further, we save the plot as PDF and restrict the number of labelled genes to 5.

annotation = "Stroma"
cell_type = "Fibroblasts"

exp.dge(
    target_id=0,
    ref_id=1,
    target_annotation_tuple=("Demo", annotation),
    ref_annotation_tuple=("Demo", annotation),
    target_cell_type_tuple=("cell_type_dc", cell_type),
    ref_cell_type_tuple="same",
    name_col="region_name",
    label_top_n = 5,
    savepath="figures/volcano_demo.pdf"
)

Calculate differentially expressed genes with Scanpy's `rank_genes_groups` using 't-test'.
Saving figure to file figures/volcano_demo.pdf
Saved.

Scenario 4: Return results instead of Volcano plot

dge = exp.dge(
    target_id=0,
    ref_id=1,
    target_annotation_tuple=("Demo", annotation),
    ref_annotation_tuple=("Demo", annotation),
    target_cell_type_tuple=("cell_type_tacco", cell_type),
    return_results=True,
    plot_volcano=False
)

Calculate differentially expressed genes with Scanpy's `rank_genes_groups` using 't-test'.

dge.keys()

dict_keys(['results', 'params'])

dge_results = dge['results']

dge['params']

{'groupby': 'DGE_COMPARISON_COLUMN',
 'reference': 'REFERENCE',
 'method': 't-test',
 'use_raw': False,
 'layer': None,
 'corr_method': 'benjamini-hochberg'}

GO term enrichment analysis

Gene ontology (GO) term enrichment analysis can be performed via three different analysis platforms: g:Profiler and Enrichr.

As explained here in case of panel-based technologies such as Xenium it is important to us a custom background gene list for the statistical analysis instead of all possible genes. Here, we used the overall gene list for this.

STRINGdb is also implemented but does not allow to limit the background gene list. Therefore, this tool is not recommended to be used for Xenium data.

⚠️ Attention: Due to the low number of genes in a normal Xenium run, using GO term enrichment analysis with such datasets can be problematic. Please get in contact with statisticians to make sure it is ok to use this method with your data.

from insitupy.utils.go import GOEnrichment, get_up_down_genes
from insitupy.plotting.go import go_plot

genes_up, genes_down = get_up_down_genes(dge_results, pval_threshold=0.05, logfold_threshold=1)

background_genes = exp.data[0].cells.matrix.var_names.tolist()

# setup go term enrichment class
go = GOEnrichment()

# run go term enrichment analysis for up-regulated genes
go.gprofiler(target_genes=genes_up, key_added='up',
             top_n=20, organism="hsapiens", return_df=False,
             background=background_genes
             )
go.enrichr(target_genes=genes_up, key_added='up',
             top_n=20, organism="human", return_df=False,
             background=background_genes
             )

# for down-regulated genes
go.gprofiler(target_genes=genes_down, key_added='down',
             top_n=20, organism="hsapiens", return_df=False,
             background=background_genes
             )
go.enrichr(target_genes=genes_down, key_added='down',
             top_n=20, organism="human", return_df=False,
             background=background_genes
             )

The results are saved in the GOEnrichment class and can be accessed with the respective keys.

go

GOEnrichment analyses performed:
  gprofiler:
    - up
    - down
  enrichr:
    - up
    - down

Gprofiler does not return any significant results.

enrichment = go.results["gprofiler"]["up"]
enrichment.head()

		source	native	name	p_value	significant	description	term_size	query_size	intersection_size	effective_domain_size	precision	Gene ratio	query	parents	intersections	evidences	Enrichment score

enrichment = go.results["gprofiler"]["down"]
enrichment.head()

		source	native	name	p_value	significant	description	term_size	query_size	intersection_size	effective_domain_size	precision	Gene ratio	query	parents	intersections	evidences	Enrichment score

Enrichr does return significant results (before multiple testing correction).

enrichment = go.results["enrichr"]["down"]
enrichment.head()

		source	name	P-value	Adjusted P-value	Old P-value	Old adjusted P-value	Odds Ratio	Combined Score	intersections	Enrichment score	native
query	0	GO_Biological_Process_2025	Negative Regulation of T Cell Activation	0.016985	0.198346	0	0	7.970588	32.483755	[CD274, SDC4, CTSG]	0.702576	GO:0050868
	28	GO_Biological_Process_2025	Androgen Receptor Signaling Pathway	0.067340	0.198346	0	0	inf	inf	[SCGB2A1]	0.702576	GO:0030521
	30	GO_Biological_Process_2025	Protein Polymerization	0.067340	0.198346	0	0	inf	inf	[KRT5]	0.702576	GO:0051258
	31	GO_Biological_Process_2025	Regulation of Angiotensin Levels in Blood	0.067340	0.198346	0	0	inf	inf	[CTSG]	0.702576	GO:0002002
	32	GO_Biological_Process_2025	Sensory Perception of Bitter Taste	0.067340	0.198346	0	0	inf	inf	[PIGR]	0.702576	GO:0050913

enrichment = go.results["enrichr"]["up"]
enrichment.head()

		source	name	P-value	Adjusted P-value	Old P-value	Old adjusted P-value	Odds Ratio	Combined Score	intersections	Enrichment score	native
query	0	GO_Biological_Process_2025	Regulation of Apoptotic Process	0.003486	0.124579	0	0	9.678571	54.770378	[FOXA1, TFAP2A, TCIM, FASN]	0.904557	GO:0042981
	25	GO_Biological_Process_2025	Cellular Response to Amino Acid Starvation	0.040404	0.124579	0	0	inf	inf	[FASN]	0.904557	GO:0034198
	27	GO_Biological_Process_2025	fatty-acyl-CoA Metabolic Process	0.040404	0.124579	0	0	inf	inf	[FASN]	0.904557	GO:0035337
	28	GO_Biological_Process_2025	Positive Regulation of Tooth Mineralization	0.040404	0.124579	0	0	inf	inf	[TFAP2A]	0.904557	GO:0070172
	29	GO_Biological_Process_2025	Positive Regulation of Cell-Cell Adhesion Medi...	0.040404	0.124579	0	0	inf	inf	[FOXA1]	0.904557	GO:2000049

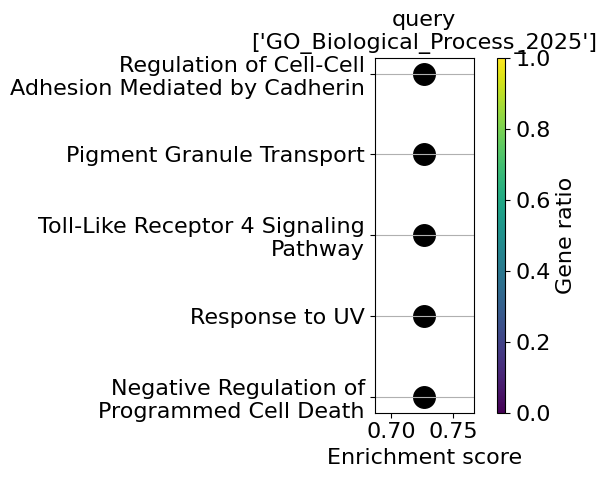

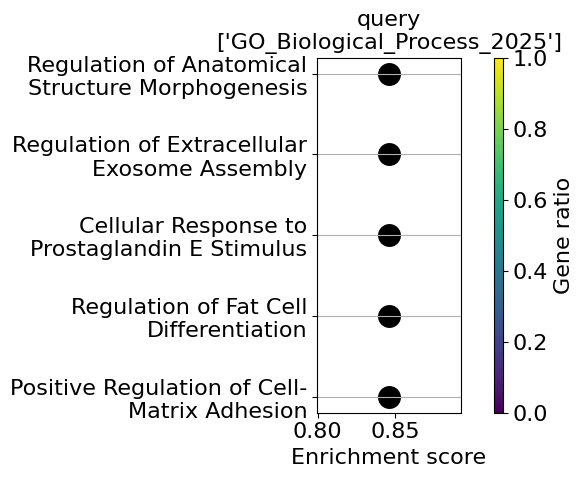

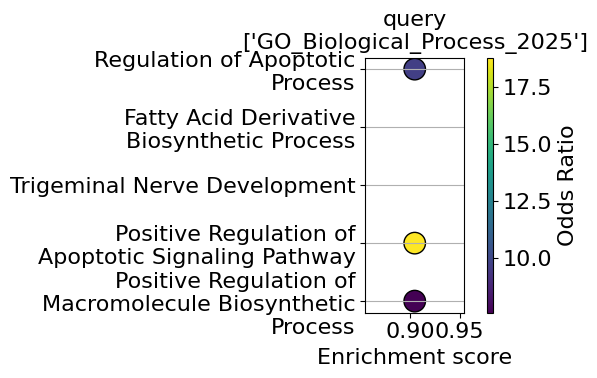

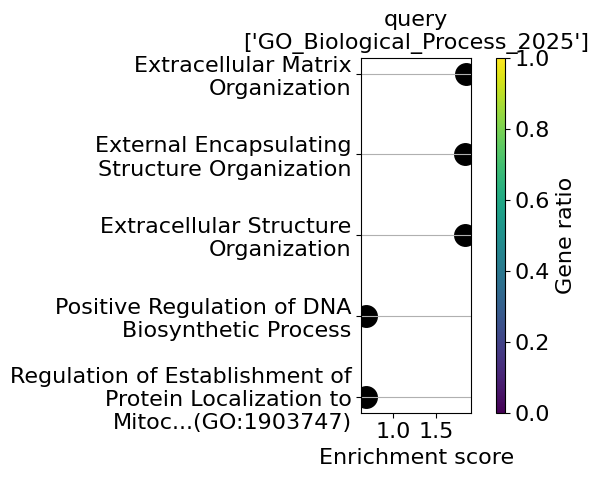

go_plot(enrichment=enrichment,
        style='dot',
        libraries='GO_Biological_Process_2025',
        color_key="Odds Ratio",
        max_to_plot=5,
        figsize=(6,4),
        #savepath="figures/go_demo.pdf"
        )

GO term enrichment analysis for all three regions

up_list = []
down_list = []
for i in range(len(exp)):
    dge = exp.dge(
        target_id=i,
        ref_id="rest",
        target_cell_type_tuple=("cell_type_dc_sub", "Macrophages"),
        plot_volcano=False,
        return_results=True
    )
    genes_up, genes_down = get_up_down_genes(dge['results'], pval_threshold=0.05, logfold_threshold=1)
    up_list.append(genes_up)
    down_list.append(genes_down)

Calculate differentially expressed genes with Scanpy's `rank_genes_groups` using 't-test'.
Calculate differentially expressed genes with Scanpy's `rank_genes_groups` using 't-test'.
Calculate differentially expressed genes with Scanpy's `rank_genes_groups` using 't-test'.

up_list

[['KRT7',
  'FOXA1',
  'KRT8',
  'FASN',
  'CCND1',
  'SCD',
  'APOC1',
  'EPCAM',
  'MYO5B',
  'MLPH',
  'SERHL2',
  'S100A14',
  'TCIM',
  'TENT5C',
  'ABCC11',
  'TFAP2A',
  'AR',
  'PCLAF',
  'ELF3',
  'TRAF4',
  'ELF5',
  'DMKN',
  'STC1',
  'LILRA4',
  'ESM1',
  'SOX17',
  'SCGB2A1'],
 ['POSTN',
  'LUM',
  'CCDC80',
  'MMP2',
  'CRISPLD2',
  'PDGFRB',
  'LRRC15',
  'MEDAG',
  'GJB2',
  'GZMB',
  'LTB'],
 ['CEACAM6',
  'SFRP1',
  'ADH1B',
  'SERPINA3',
  'KRT15',
  'OPRPN',
  'AQP1',
  'SDC4',
  'CLDN4',
  'LPL',
  'KRT23',
  'MMP12',
  'MYH11']]

# setup go term enrichment class
go = GOEnrichment()

for i, genes_up in enumerate(up_list):
    # run go term enrichment analysis for up-regulated genes
    go.enrichr(target_genes=genes_up, key_added=f'Region{i+1}_up',
                top_n=20, organism="Human", return_df=False,
                background=background_genes
                )

The results are saved in the GOEnrichment class and can be accessed with the respective keys.

go

GOEnrichment analyses performed:
  enrichr:
    - Region1_up
    - Region2_up
    - Region3_up

go_results = go.results["enrichr"]

for i, k in enumerate(go_results.keys()):
    enrichment = go_results[k]
    go_plot(enrichment=enrichment,
            style='dot',
            libraries='GO_Biological_Process_2025',
            max_to_plot=5,
            figsize=(6,5),
            #savepath=f"figures/go_demo_region{i+1}.pdf"
            )

color_key 'Gene ratio' not found in columns.
color_key 'Gene ratio' not found in columns.
color_key 'Gene ratio' not found in columns.
