Working with histological annotations and regions

Working with histological annotations and regions#

## The following code ensures that all functions and init files are reloaded before executions.
%load_ext autoreload
%autoreload 2

from pathlib import Path
from insitupy import InSituData, CACHE

Load Xenium data into `InSituData` object#

Now the Xenium data can be parsed by providing the data path to the InSituPy project folder

insitupy_project = Path(CACHE / "out/demo_insitupy_project")
xd = InSituData.read(insitupy_project)

xd

InSituData
Method:		Xenium
Slide ID:	0001879
Sample ID:	Replicate 1
Path:		C:\Users\ge37voy\.cache\InSituPy\out\demo_insitupy_project
Metadata file:	.ispy

No modalities loaded.

Here we only load the images and cells modalities. Since InSitupy v0.6.2 transcripts are loaded lazily, so it would be also just as fast to use load_all() here.

xd.load_images()
xd.load_cells()

xd

InSituData
Method:		Xenium
Slide ID:	0001879
Sample ID:	Replicate 1
Path:		C:\Users\ge37voy\.cache\InSituPy\out\demo_insitupy_project
Metadata file:	.ispy
    ➤ images
       nuclei:	(25778, 35416)
       CD20:	(25778, 35416)
       HER2:	(25778, 35416)
       HE:	(25778, 35416, 3)
    ➤ cells
       MultiCellData with main layer 'main'
           matrix
               AnnData object with n_obs × n_vars = 156447 × 297
               obs: 'transcript_counts', 'control_probe_counts', 'control_codeword_counts', 'total_counts', 'cell_area', 'nucleus_area', 'n_genes_by_counts', 'n_genes', 'leiden', 'cell_type_dc', 'cell_type_dc_sub', 'cell_type_tacco', 'cell_type_publ'
               var: 'gene_ids', 'feature_types', 'genome', 'n_cells_by_counts', 'mean_counts', 'pct_dropout_by_counts', 'total_counts', 'n_cells'
               uns: 'cell_type_dc_colors', 'cell_type_dc_sub', 'cell_type_dc_sub_colors', 'cell_type_publ_colors', 'cell_type_tacco_colors', 'counts_location', 'leiden', 'leiden_colors', 'log1p', 'neighbors', 'pca', 'umap'
               obsm: 'OT', 'X_pca', 'X_umap', 'annotations', 'ora_estimate', 'ora_pvals', 'regions', 'spatial'
               varm: 'OT', 'PCs'
               layers: 'counts', 'norm_counts'
               obsp: 'connectivities', 'distances'
           boundaries
               BoundariesData object with 2 entries:
                   cells
                   nuclei

Create Annotations#

For the analysis of spatial transcriptomic datasets, the inclusion of annotations from experts in disease pathology is key. Here, we demonstrate two ways to annotate Xenium data:

Within InSituPy using the napari viewer.
Using QuPath.

Key Concepts#

Annotations in `InSituPy`#

Annotations consist of polygons, points or lines.
Each polygon is assigned to a certain class (e.g., “tumor cells”, “immune cells”, “stroma”, etc.).
Each polygon is also assigned a key (e.g., the name of the pathologist doing the annotations).
Classes within one key do not have to be unique (multiple annotations could contain tumor cells).
A unique identifier is used to differentiate between the polygons.

Regions in `InSituPy`#

Regions also consist of polygons.
Regions have a key for a cohesive group of polygons (e.g. “TMA”).
Each polygon within one key is required to have a unique name (e.g. “TMA A-1”).
Regions can delineate:
- The positions of TMA cores.
- The positions of different tissue sections.
- Regions of interest within the same dataset.

1. In `napari` viewer#

First visualize the Xenium data using .show().

xd.show()

A new annotation layer can be added using the “Add geometries” widget on the bottom right.

As described above, InSituPy differentiates between “regions” and histological “annotations”. Since napari creates separate layers for point and shape annotations, the “annotations” are split further into two subtypes, resulting in a total of three possible geometry types one can chose from:

Geometric annotations
Point annotations
Region

Since InSituPy uses different icons to differentiate between the types, it is important to add the geometries via this widget and not via the normal napari annotation panel.

After adding the respective shapes layer, one can now add shapes using the tool box of napari on the top left. E.g. for a geometric annotation, the tool set would look like this:

After adding the geometries, they can be imported into the InSituPy object using .store_geometries():

xd.sync_geometries()

Added 4 new annotations to key 'TestKey'
Added 2 new annotations to existing key 'TestKey'

xd

InSituData
Method:		Xenium
Slide ID:	0001879
Sample ID:	Replicate 1
Path:		C:\Users\ge37voy\.cache\InSituPy\out\demo_insitupy_project
Metadata file:	.ispy
    ➤ images
       nuclei:	(25778, 35416)
       CD20:	(25778, 35416)
       HER2:	(25778, 35416)
       HE:	(25778, 35416, 3)
    ➤ cells
       MultiCellData with main layer 'main'
           matrix
               AnnData object with n_obs × n_vars = 156447 × 297
               obs: 'transcript_counts', 'control_probe_counts', 'control_codeword_counts', 'total_counts', 'cell_area', 'nucleus_area', 'n_genes_by_counts', 'n_genes', 'leiden', 'cell_type_dc', 'cell_type_dc_sub', 'cell_type_tacco', 'cell_type_publ'
               var: 'gene_ids', 'feature_types', 'genome', 'n_cells_by_counts', 'mean_counts', 'pct_dropout_by_counts', 'total_counts', 'n_cells'
               uns: 'cell_type_dc_colors', 'cell_type_dc_sub', 'cell_type_dc_sub_colors', 'cell_type_publ_colors', 'cell_type_tacco_colors', 'counts_location', 'leiden', 'leiden_colors', 'log1p', 'neighbors', 'pca', 'umap'
               obsm: 'OT', 'X_pca', 'X_umap', 'annotations', 'ora_estimate', 'ora_pvals', 'regions', 'spatial'
               varm: 'OT', 'PCs'
               layers: 'counts', 'norm_counts'
               obsp: 'connectivities', 'distances'
           boundaries
               BoundariesData object with 2 entries:
                   cells
                   nuclei
    ➤ annotations
       TestKey:	6 annotations, 2 classes ('TestClass', 'test')

xd.annotations["TestKey"].head()

	objectType	geometry	name	color	origin	layer_type
id
354019c9-57a0-4827-87d9-190d6312b115	annotation	POLYGON ((1501.698 813.23688, 2108.9314 1596.2...	TestClass	[255, 0, 0]	manual	Shapes
35a7d782-8bc8-46de-9281-3e4f6d763db6	annotation	POLYGON ((2875.96338 1612.22827, 2796.06421 18...	TestClass	[255, 0, 0]	manual	Shapes
2d33285e-c2fe-4b42-a2b5-ee278fcefc2a	annotation	POLYGON ((2764.10449 3018.45312, 2987.82202 32...	TestClass	[255, 0, 0]	manual	Shapes
67498f34-c7e6-4bd9-b9e4-6c3beb9a5dab	annotation	POLYGON ((5240.97803 3178.25146, 5161.07861 35...	TestClass	[255, 0, 0]	manual	Shapes
c3f94d99-4817-47bb-9112-5588e4ecadca	annotation	POLYGON ((4489.92578 1228.7124, 4617.76465 151...	test	[255, 0, 0]	manual	Shapes

Export annotations or regions#

To export annotations or regions, one can save the AnnotationsData or RegionsData object as .geojson file.

xd.annotations.save(path=CACHE / "out/annotations_export", overwrite=True)

2. Create annotations in QuPath#

To create annotations in QuPath, follow these steps:

Export the registered HE image as OME-TIFF by setting as_zarr=False:

xd.images.save(CACHE / "out/image_export", keys_to_save="HE", as_zarr=False, overwrite=False)

Open the exported image in QuPath and start with the annotations. Documentations on QuPath can be found here.
Select an annotation tool from the bar on the top left:

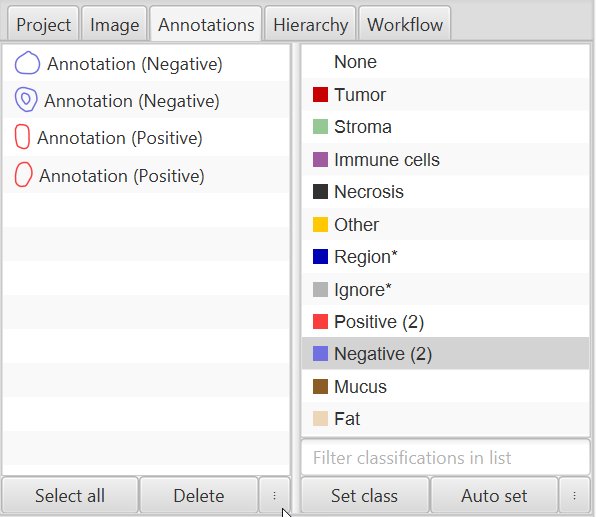

Add as many annotations as you want and label them by setting classes in the annotation list. Do not forget to press the “Set class” button:

../../_images/qupath_annotation_list.jpg

Export annotations using File > Export objects as GeoJSON. Tick Pretty JSON to get an easily readable JSON file. The file name needs to have following structure: annotation-{slide_id}__{sample_id}__{annotation_label}.

Import annotations into `InSituData`#

For demonstration purposes, we created dummy annotation files in ./demo_annotations/. To add the annotations to InSituData follow the steps below.

3. Create regions in QuPath#

For creating regions, one can use the same annotation tools as described above. But instead of setting a class for the annotation, you can name the region by double-clicking on it, and selecting “Set Properties”:

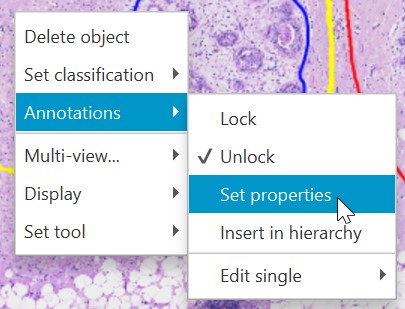

For export, regions can then be selected and exported in the same way as described above for annotations.

Import annotations and regions#

Since annotations could have been done on images with different resolutions, it is important to specify the pixel_size during the import. In standard Xenium experiments the pixel size is 0.2125 µm but if the images were downscaled before the annotation, this value might differ.

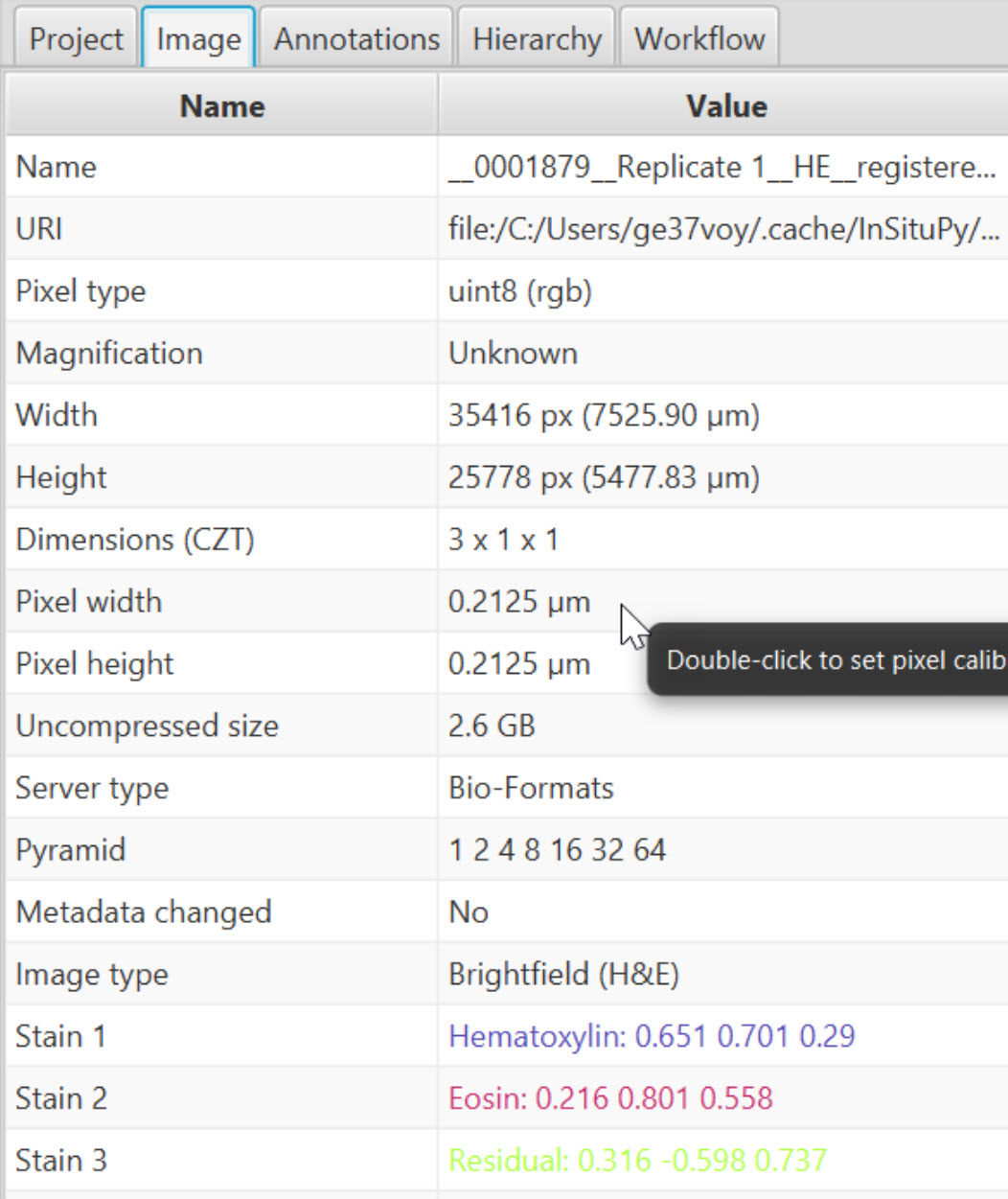

In QuPath the pixel size and other image metadata can be looked up under “Image” and “Pixel width” or “Pixel height”:

xd.import_annotations(
    files=[
        "../../demo_data/demo_annotations/annotations-0001879__Replicate 1__demo.geojson",
        "../../demo_data/demo_annotations/annotations-0001879__Replicate 1__demo2.geojson",
        "../../demo_data/demo_annotations/annotations-mixed_types.geojson"
           ],
    keys=["demo", "demo2", "demo3"],
    scale_factor=0.2125
    )

xd.annotations["demo"]

	objectType	geometry	name	color	origin	layer_type
id
bd3aacca-1716-4df8-91dd-bf8f6413a7bd	annotation	POLYGON ((1883.3875 2297.975, 1883.3875 2300.1...	Positive	[250, 62, 62]	file	Shapes
69814505-4059-42cd-8df2-752f7eb0810d	annotation	POLYGON ((2782.9 2654.55, 2777.885 2655.0175, ...	Positive	[250, 62, 62]	file	Shapes
1957cd32-0a21-4b45-9dae-ecf236217140	annotation	POLYGON ((6582.24275 4874.325, 6583.675 4874.3...	Negative	[112, 112, 225]	file	Shapes
19d2197a-1b8e-456f-8223-fba74641ac1c	annotation	POLYGON ((6622.5625 3486.7, 6619.1625 3487.125...	Negative	[112, 112, 225]	file	Shapes

xd.annotations["demo2"]

	objectType	geometry	name	color	origin	layer_type
id
1970eccb-ad38-4b4b-b7a8-54509027b57d	annotation	POLYGON ((5380.2875 827.05, 5379.0125 827.475,...	Negative	[112, 112, 225]	file	Shapes
a3b32cce-1bb9-4a6f-b1d1-9e0c44420cfa	annotation	POLYGON ((6576.875 2306.6875, 6575.6 2307.1125...	Positive	[250, 62, 62]	file	Shapes
92bfe928-a21f-4864-b7cb-f0d300113d88	annotation	MULTIPOLYGON (((4575.975 4152.4625, 4575.975 4...	Other	[255, 200, 0]	file	Shapes
a6c17a54-6839-40b2-8531-c9227635f344	annotation	POLYGON ((1381.4625 3639.275, 1380.1875 3639.7...	Other	[255, 200, 0]	file	Shapes
e78efe2f-d185-4ab6-9cc9-6621897f3662	annotation	POLYGON ((6272.92138 3936.1375, 6263.65 3945.2...	Negative	[112, 112, 225]	file	Shapes

xd.annotations["demo3"]

	objectType	geometry	name	color	origin	layer_type
id
8f57c3c3-2216-48b7-99bd-aba12d8c3c41	annotation	POLYGON ((3828.4 2261.74375, 3827.8135 2274.22...	Stroma	[150, 200, 150]	file	Shapes
7e8f8db4-81d4-472e-8e93-0fc756df87aa	annotation	POLYGON ((2618.425 1436.075, 2618.07225 1436.1...	Stroma	[150, 200, 150]	file	Shapes
38a48ddb-f33c-4c61-b996-330b25d84081	annotation	LINESTRING (3600.5575 1648.7535, 3878.03575 13...	Necrosis	[50, 50, 50]	file	Shapes
eee244c9-e919-41ae-bb91-44c7abcc0cec	annotation	LINESTRING (2483.6235 1334.39588, 2855.93412 1...	Immune cells	[160, 90, 160]	file	Shapes
e3d4c0b6-0998-4692-ab7d-f580f713e275	annotation	POINT (5096.23663 1632.56312)	unclassified	[0, 0, 0]	file	Points
e9105240-3b35-489e-994f-e8f9c4786516	annotation	MULTIPOINT (4219.655 1650.71912, 4261.94675 13...	Stroma	[150, 200, 150]	file	Points
2802df97-78ad-44ac-8e6b-d9b9406c8e3f	annotation	MULTIPOINT (3372.7915 2005.41562, 3530.0415 20...	Tumor	[200, 0, 0]	file	Points

Load regions#

Regions can be created in QuPath either as described above or using tools like the TMA dearrayer. They are also exported as objects as annotations but different to annotations they do not have a classification and each name of a region has to be unique.

In the following demo regions are read. One of the region files has non-unique names to demonstrate the warning that appears in this case.

In regions classes have to be unique#

When reading an “Annotation” .geojson as shown below, the import_regions function throws an error indicating that in regions only one geometry per class is allowed. Further, only normal polygons (shapely.Polygon-typed) are allowed. Any other types of geometries (Points, Lines, MultiPolygons, …) are skipped.

xd.import_regions(
    files=[
        "../../demo_data/demo_annotations/annotations-mixed_types.geojson"
        ],
    keys=['test'],
    scale_factor=0.2125
    )

Multiple regions can be imported simultaneously.

xd.import_regions(
    files=[
        "../../demo_data/demo_regions/regions-0001879__Replicate 1__demo_regions.geojson",
        "../../demo_data/demo_regions/regions-0001879__Replicate 1__TMA.geojson",
        ],
    keys=['demo_regions', 'TMA'],
    scale_factor=0.2125
    )

Properties of the anotations and regions modalities can be inspected in the InSituData representation:

xd

InSituData
Method:		Xenium
Slide ID:	0001879
Sample ID:	Replicate 1
Path:		C:\Users\ge37voy\.cache\InSituPy\out\demo_insitupy_project
Metadata file:	.ispy
    ➤ images
       nuclei:	(25778, 35416)
       CD20:	(25778, 35416)
       HER2:	(25778, 35416)
       HE:	(25778, 35416, 3)
    ➤ cells
       MultiCellData with main layer 'main'
           matrix
               AnnData object with n_obs × n_vars = 156447 × 297
               obs: 'transcript_counts', 'control_probe_counts', 'control_codeword_counts', 'total_counts', 'cell_area', 'nucleus_area', 'n_genes_by_counts', 'n_genes', 'leiden', 'cell_type_dc', 'cell_type_dc_sub', 'cell_type_tacco', 'cell_type_publ'
               var: 'gene_ids', 'feature_types', 'genome', 'n_cells_by_counts', 'mean_counts', 'pct_dropout_by_counts', 'total_counts', 'n_cells'
               uns: 'cell_type_dc_colors', 'cell_type_dc_sub', 'cell_type_dc_sub_colors', 'cell_type_publ_colors', 'cell_type_tacco_colors', 'counts_location', 'leiden', 'leiden_colors', 'log1p', 'neighbors', 'pca', 'umap'
               obsm: 'OT', 'X_pca', 'X_umap', 'annotations', 'ora_estimate', 'ora_pvals', 'regions', 'spatial'
               varm: 'OT', 'PCs'
               layers: 'counts', 'norm_counts'
               obsp: 'connectivities', 'distances'
           boundaries
               BoundariesData object with 2 entries:
                   cells
                   nuclei
    ➤ annotations
       TestKey:	6 annotations, 2 classes ('TestClass', 'test')
       demo:	4 annotations, 2 classes ('Negative', 'Positive')
       demo2:	5 annotations, 3 classes ('Negative', 'Other', 'Positive')
       demo3:	7 annotations, 5 classes ('Immune cells', 'Necrosis', 'Stroma', 'Tumor', 'unclassified')
    ➤ regions
       demo_regions:	3 regions, 3 classes ('Region1', 'Region2', 'Region3')
       TMA:	6 regions, 6 classes ('A-1', 'A-2', 'A-3', 'B-1', 'B-2', 'B-3')

Visualization of `annotations` and `regions` using `napari` viewer#

Ìf the InSituData object only contains .annotations or .regions attributes, one can choose between the “Add geometries” and “Show geometries” widgets:

../../_images/toggle_geometry_widgets.jpg

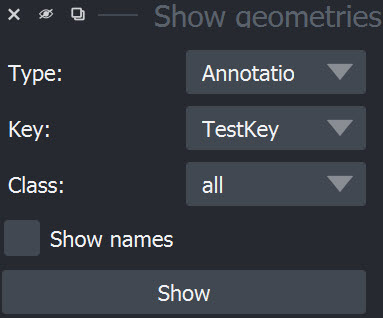

Annotations and regions stored in the InSituData object can be visualized using the “Show geometries” widget:

../../_images/show_geometries_widget.jpg

To show the names of the annotations, tick “Show names”:

xd.show()

Assign annotations to observations#

To use the annotations in analyses (e.g. to select only observations within a certain annotation or compare gene expression between different annotations) one can use the assign_annotations function. It adds columns containing the annotation class to xd.matrix.obs. The column has the syntax annotation-{Label} and if an observation is not part of any annotation within this label, it contains NaN.

xd.assign_annotations(overwrite=True)

Using CellData from MultiCellData layer 'main'.
Assigning key 'TestKey'...
Added results to `.cells['main'].matrix.obsm['annotations']
Assigning key 'demo'...
Added results to `.cells['main'].matrix.obsm['annotations']
Assigning key 'demo2'...
Added results to `.cells['main'].matrix.obsm['annotations']
Assigning key 'demo3'...
Added results to `.cells['main'].matrix.obsm['annotations']

xd.assign_regions()

Using CellData from MultiCellData layer 'main'.
Assigning key 'demo_regions'...
Added results to `.cells['main'].matrix.obsm['regions']
Assigning key 'TMA'...
Added results to `.cells['main'].matrix.obsm['regions']

xd

InSituData
Method:		Xenium
Slide ID:	0001879
Sample ID:	Replicate 1
Path:		C:\Users\ge37voy\.cache\InSituPy\out\demo_insitupy_project
Metadata file:	.ispy
    ➤ images
       nuclei:	(25778, 35416)
       CD20:	(25778, 35416)
       HER2:	(25778, 35416)
       HE:	(25778, 35416, 3)
    ➤ cells
       MultiCellData with main layer 'main'
           matrix
               AnnData object with n_obs × n_vars = 156447 × 297
               obs: 'transcript_counts', 'control_probe_counts', 'control_codeword_counts', 'total_counts', 'cell_area', 'nucleus_area', 'n_genes_by_counts', 'n_genes', 'leiden', 'cell_type_dc', 'cell_type_dc_sub', 'cell_type_tacco', 'cell_type_publ'
               var: 'gene_ids', 'feature_types', 'genome', 'n_cells_by_counts', 'mean_counts', 'pct_dropout_by_counts', 'total_counts', 'n_cells'
               uns: 'cell_type_dc_colors', 'cell_type_dc_sub', 'cell_type_dc_sub_colors', 'cell_type_publ_colors', 'cell_type_tacco_colors', 'counts_location', 'leiden', 'leiden_colors', 'log1p', 'neighbors', 'pca', 'umap'
               obsm: 'OT', 'X_pca', 'X_umap', 'annotations', 'ora_estimate', 'ora_pvals', 'regions', 'spatial'
               varm: 'OT', 'PCs'
               layers: 'counts', 'norm_counts'
               obsp: 'connectivities', 'distances'
           boundaries
               BoundariesData object with 2 entries:
                   cells
                   nuclei
    ➤ annotations
       TestKey:	6 annotations, 2 classes ('TestClass', 'test') ✔
       demo:	4 annotations, 2 classes ('Negative', 'Positive') ✔
       demo2:	5 annotations, 3 classes ('Negative', 'Other', 'Positive') ✔
       demo3:	7 annotations, 5 classes ('Immune cells', 'Necrosis', 'Stroma', 'Tumor', 'unclassified') ✔
    ➤ regions
       demo_regions:	3 regions, 3 classes ('Region1', 'Region2', 'Region3') ✔
       TMA:	6 regions, 6 classes ('A-1', 'A-2', 'A-3', 'B-1', 'B-2', 'B-3') ✔

After assigning the annotations, the already analyzed labels analyzed are marked with a ✔:

xd.regions["demo_regions"]

	objectType	name	geometry	origin	layer_type
id
2d0da635-c408-459f-9178-839097fe5a98	annotation	Region1	POLYGON ((1564.425 1321.9625, 2267.8 1321.9625...	file	Shapes
ce6c2342-620d-4f44-be03-68a4454e9b33	annotation	Region2	POLYGON ((4541.7625 1356.3875, 5613.825 1356.3...	file	Shapes
70a125ec-c53e-469b-8927-efe224e504c1	annotation	Region3	POLYGON ((2110.7625 2708.3125, 3387.675 2708.3...	file	Shapes

Following cells show examples how to explore the assigned annotations:

xd.cells.matrix.obsm['annotations']['demo2']

2         unassigned
5         unassigned
8         unassigned
10        unassigned
13        unassigned
             ...
167776    unassigned
167777    unassigned
167778    unassigned
167779    unassigned
167780    unassigned
Name: demo2, Length: 156447, dtype: object

# print number of cells within each annotation
annots = xd.cells.matrix.obsm['annotations']['demo2']
annots.value_counts()

demo2
unassigned    147323
Negative        4827
Other           2602
Positive        1695
Name: count, dtype: int64

# show geopandas dataframe for one annotation
xd.annotations["demo2"]

	objectType	geometry	name	color	origin	layer_type
id
1970eccb-ad38-4b4b-b7a8-54509027b57d	annotation	POLYGON ((5380.2875 827.05, 5379.0125 827.475,...	Negative	[112, 112, 225]	file	Shapes
a3b32cce-1bb9-4a6f-b1d1-9e0c44420cfa	annotation	POLYGON ((6576.875 2306.6875, 6575.6 2307.1125...	Positive	[250, 62, 62]	file	Shapes
92bfe928-a21f-4864-b7cb-f0d300113d88	annotation	MULTIPOLYGON (((4575.975 4152.4625, 4575.975 4...	Other	[255, 200, 0]	file	Shapes
a6c17a54-6839-40b2-8531-c9227635f344	annotation	POLYGON ((1381.4625 3639.275, 1380.1875 3639.7...	Other	[255, 200, 0]	file	Shapes
e78efe2f-d185-4ab6-9cc9-6621897f3662	annotation	POLYGON ((6272.92138 3936.1375, 6263.65 3945.2...	Negative	[112, 112, 225]	file	Shapes

Save imported annotations in `InSituPy` project#

xd.save()

Updating project in C:\Users\ge37voy\.cache\InSituPy\out\demo_insitupy_project
	Updating cells...
	Updating annotations...
	Updating regions...
Saved.

Working with histological annotations and regions

Contents
